Z Blk waterproof molded case

Name: Z Blk waterproof molded case
SKU: HSMK

Brand: Ashun Sound Machine

Model: HSMK

UPC: 6950474311130

Please log in to see your price

Dealer locator

Metal Chassis

Sturdy plastic and metal construction

High quality rubberized buttons on the panel

PolyTouch© Keybed

Semi-weighted

Polyphonic aftertouch

Note On & Note Off Velocity

5 banks of 128 patch memories

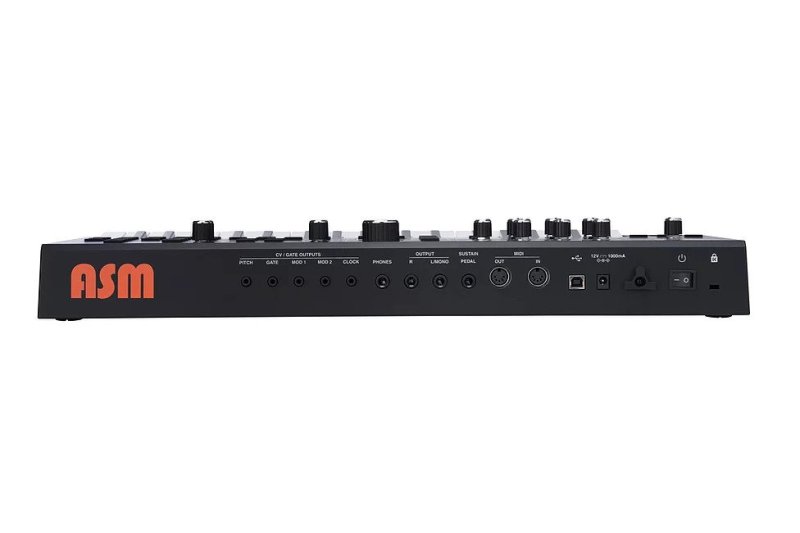

CV gate input and oututs

Support multiple CV/GATE standards

1v per octave +/-5V

1V per octave 0-10V

Hz to Volts +/-5V

Hz to Volts 0-10V

1.2V per octave

Gates

V-trig, S-trig

3V, 5V, 10V

Mod Out range

+/5V, 0-10V, 0-5V, 0-1V

Clock out

1PPS, 2PPQ, 24PPQ, 48 PPQ

Clock Voltage - 3v, 5V, 10V

MIDI IN/OUT/THRU

Voice overflow mode for expanding voices with another Hydrasynth

Expression pedal input

Sustain pedal input

Polarity sensing input?

DC input jack

USB port

Supports USB MIDI In/Out

Dimensions

556 x 255 x 78 mm

21.9” x 10” x 3.1” (inch)

Weight

3.4 kg (7.5 lbs)

About This Product

Description:

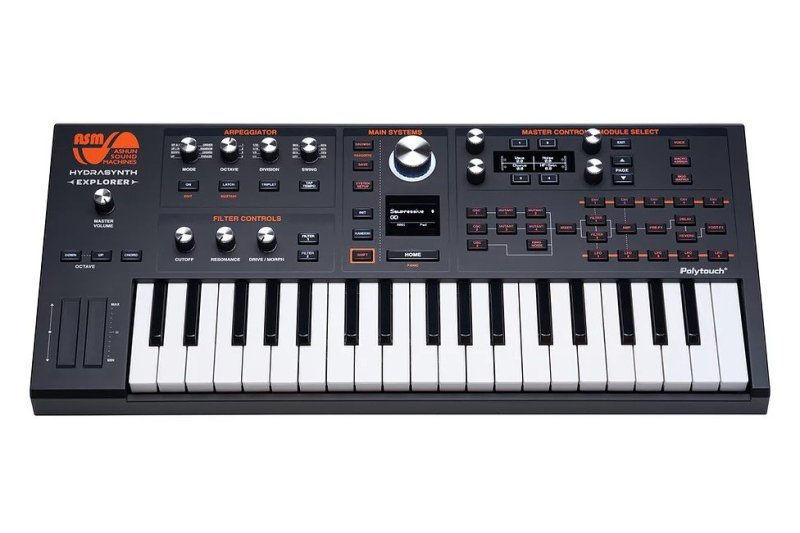

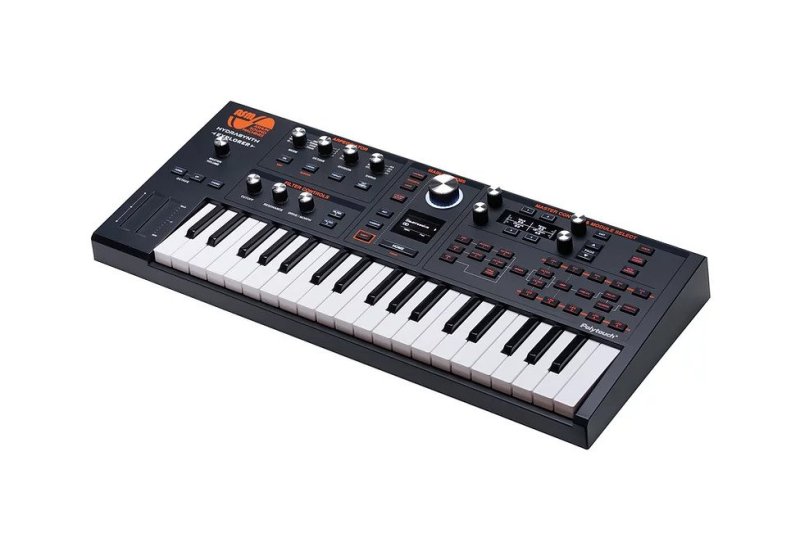

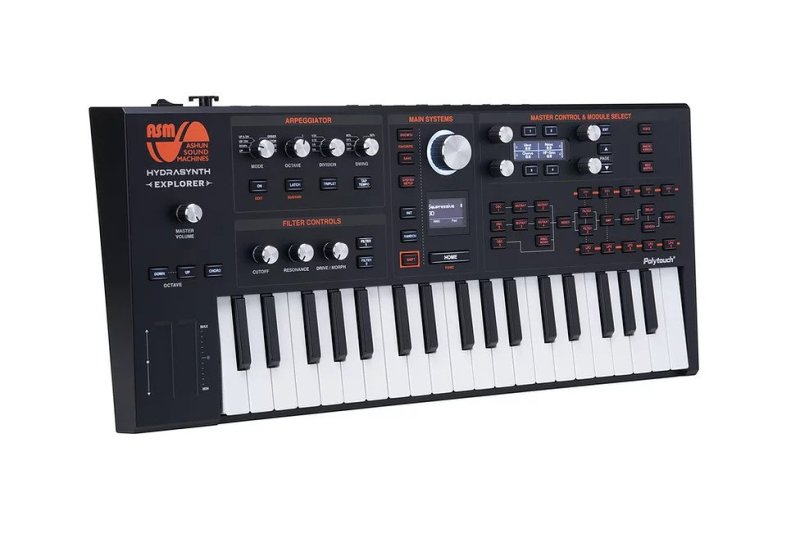

The HYDRASYNTH EXPLORER is the ultimate in power and portability, offering the powerful Hydrasynth sound engine together with battery powered operation and a new ASM PolyTouch® polyphonic aftertouch mid-sized keybed. The greatest attention has been put to its user interface, making sound creation a breeze. This is the ultimate companion for a portable setup, where a smaller footprint in needed. Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched. As for the performance capabilities, The HYDRASYNTH EXPLORER has our proprietary 37-note mid-sized Polytouch™ keybed that offers polyphonic aftertouch over each note, giving you the type of expressive control found only in certain vintage synths.

Specifications
