Audix

POLAR Column Carry Bag

Brand: Audix
Model: M70WD
UPC: 687471151112
Please log in to see your price
Dealer locator

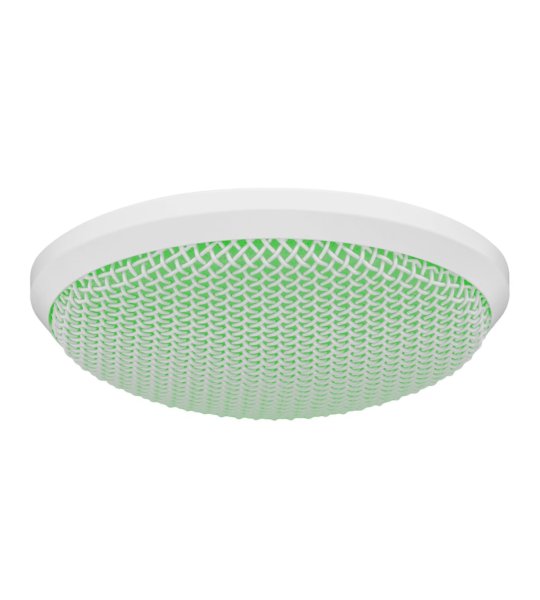

The M70WD is a steerable, flush-mount condenser microphone designed for distance miking in a variety of applications, including video conferencing, distance learning, hospital rooms, surveillance, and ambient room miking.

High output for distance miking

Aimable up to a 45-degree angle

Miniaturized integrated preamp circuitry

Immunity from RF interference

Two-color LED status indicator

RJ45 connectors for plug-and-play integration with the Audix Dante | AES67 Integrated Microphone System

No external power adaptor required

Designed, assembled, and tested by Audix in the USA

Transducer Type Condenser

Frequency Response 60 Hz – 10 kHz

Polar Pattern Cardioid

Output Impedance 150 ohms

Sensitivity 38 mV / Pa @ 1k

Equivalent Noise Level 22 dB

Signal to Noise Ratio 72 dB

Maximum SPL =130 dB

Dynamic Range 108 dB

Power Requirements 18 – 52V phantom

Connector RJ45

Polarity CAT5, CAT5e, CAT6, CAT6a, or CAT7

Materials / Finish Brass, Aluminum and steel / white or nickel finish

more
About This Product

Description:

The M70WD is a steerable, flush-mount condenser microphone designed for distance miking in a variety of applications, including video conferencing, distance learning, hospital rooms, surveillance, and ambient room miking. The flush-mount configuration and a footprint of only three inches in diameter allow the M70WD to virtually disappear. Dual-color LEDs can be set via a plugin to indicate mic status. The M70WD capsule is housed within a patented cradle that allows the microphone to be aimed up to an angle of 45 degrees. Other features include a fully integrated preamp and an extremely high sensitivity rating of 38 millivolts. In addition, the M70WD has complete immunity from RF interference caused by cell phones and GSM devices. Installing the M70WD requires just one 2-inch hole in the ceiling, with no additional tools needed. The M70WD is designed exclusively for the Audix Dante | AES67 Integrated Microphone System, which delivers high-quality audio and all microphone functions – including on-off contact closure and LED status indicators – through a single CAT5 – CAT7 cable with RJ45 connections. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. And like all Audix microphones in the system, the gain structure is optimized for its intended use, providing quality audio at the DSP. The result is a true plug-and-play installation. (Requires DN4 or DN43 microphone interface, sold separately)
Specifications
  • Barcodes
  • UPC
  • 687471151112
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.1212
  • Height In Inches
  • 3.8
  • Length in Inches
  • 9.5
  • Pounds
  • 0.9
  • Width Inches
  • 5.8
