12" 1200W Powered 2-Way Coaxial Loudspeaker
12" 1200W Powered 2-Way Coaxial Loudspeaker
12" 1200W Powered 2-Way Coaxial Loudspeaker
12" 1200W Powered 2-Way Coaxial Loudspeaker
BASSBOSS

12" 1200W Powered 2-Way Coaxial Loudspeaker

Brand: BASSBOSS
Model: DIAMON-MK3-PB
UPC: 855591006623
Please log in to see your price
Dealer locator

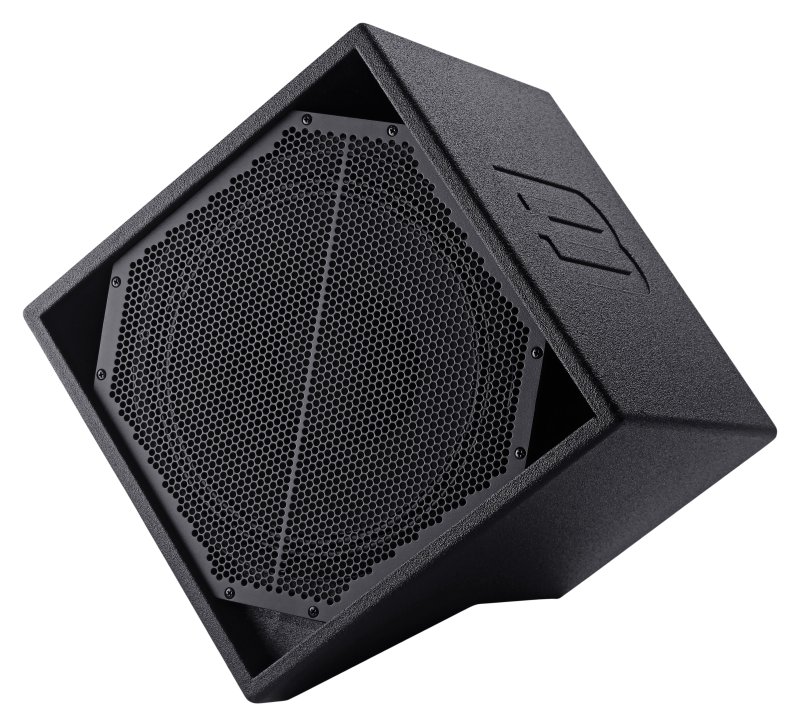

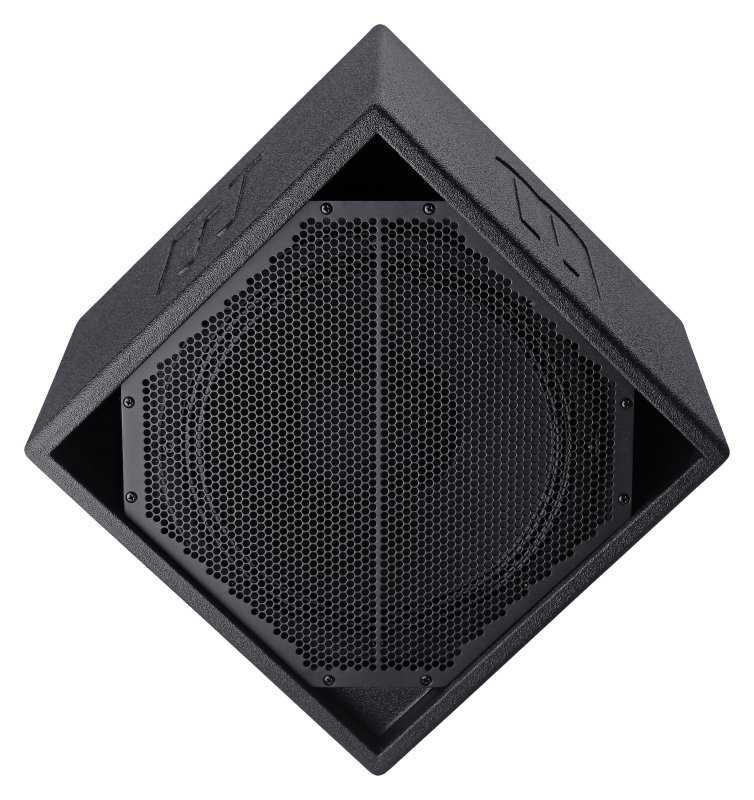

The DiaMon-MK3 is an Super Compact Active 12” Coaxial Speaker that yields a Stunning Output-To-Size Ratio, Consistent Off-Axis Response, and Superior Rejection of Feedback. This self-powered unit includes BASSSBOSS's signature precisely tuned DSP.

Compact co-axial bi-amped, mid-high loudspeaker

12 in co-axial driver with a 3” diaphragm compression driver on 1.4 in throat concentrically mounted wave guide.

1200W 2-channel Class D amplifier with signature DSP

Frequency response: 80Hz-18kHz

Coverage: 80° conical

Dims: 14 in. x 14 in. x 11.5 in.

Weight: 31 lbs.

more
About This Product

Description:

The DiaMon-MK3 is a super compact active lightweight 12” coaxial speaker that yields a Stunning Output-To-Size Ratio, Consistent Off-Axis Response, and Superior Rejection of Feedback. This mid-high loudspeaker is best combined with a powerful BASSBOSS subwoofer to create a full spectrum BASSBOSS experience. The all new MK3 series deliverers a suite of updates to the BASSBOSS line, improving clarity, performance, functionality, and safety via the new amplifiers, new DSP, custom control software, waterproof connectors, and more. The updated amplifiers + DSP feature much more powerful 96 kHz processors with pristine sound quality and eight touch-of-a-button on board presets. The new state-of-the-art asymmetrical Class D amplifier provides a true 1200 Watts of RMS power and features enhanced power allocation between the HF and LF drivers. The fully integrated and comprehensive digital processing ensures smooth response and reliable operation thanks to meticulous filter alignments and multi-stage limiters that protect the drivers from excessive peaks & thermal overload by monitoring real power output over time. New “Control BASSBOSS” software provides additional computer-accessible presets, networked remote control, and future proofing remote DSP update capabilities as new BASSBOSS programming is developed and released. Each unit features dual ethernet ports with a built-in network switch for computer connectivity and cascading networking ability. IP65 waterproof connectors have been added to provide peace-of-mind in unpredictable environments, and the MK3 line offers 90-250VAC global power compatibility for use all over the world. The DiaMon-MK3 features a 12” woofer and a co-axial 1.4” exit compression driver that flows through the center of the woofer, making it a true point-source cabinet. Both the woofer and tweeter coils share the same magnetic structure to keep size and weight to a minimum aiding in the DiaMon’s extremely compact size.
Specifications
  • Barcodes
  • UPC
  • 855591006623
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 1
  • Each
  • Cubic Feet
  • 2.6759
  • Height In Inches
  • 17
  • Length in Inches
  • 17
  • Pounds
  • 35
  • Width Inches
  • 16
