Frequency Range 470 - 698 MHz, + 216 MHz for Assisted Listening Transmit
Hardware kit includes mounting screws, brackets, and safety wire loop

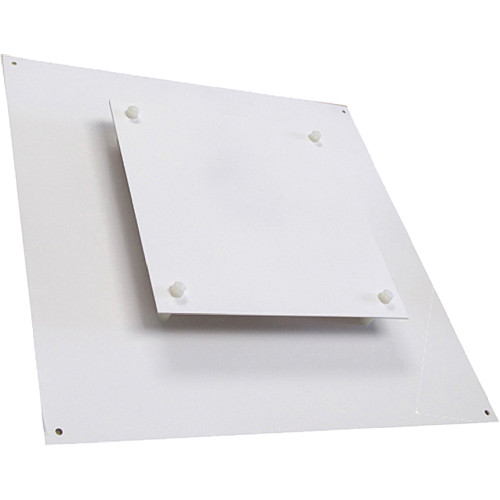

Outer dimensions 14 x 14''

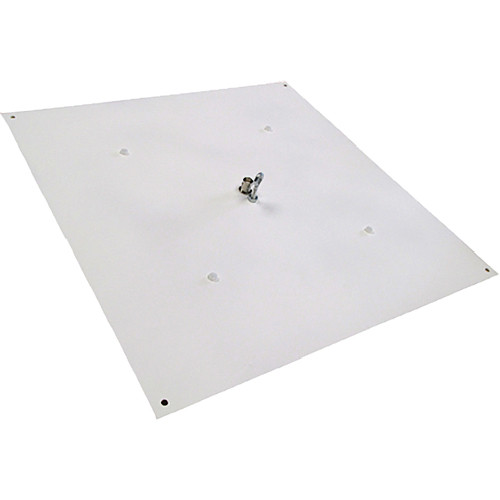

Standard BNC coaxial cable connector
Custom paint match available (contact your sales representative for more info)
Junction box option (contact your sales representative for more info)
Plenum rated coaxial cabling available in any length
Operating frequency: 216, 470-698 MHz
Bandwidth: 228 MHz
Average return loss: -6.7 dBm
Impedance (nom): 50 ohms
Pattern type: Flood
Gain: 6 dBd
F/B Ratio: N/A
F/S Ratio: N/A
Transmit power (max): 100 mW
Polarization: Elliptical
Diameter 14" x 14" (355 x 355 mm)
Weight: 2 lbs (0.9 kg)
Operating temperature: -10-40C (-14-40 F)
Mounting location: Ceiling Tile
Color/Reflectance: White
Connector: BNC female
