Audix

Shelf Kit for RCK-1

Brand: Audix
Model: ADX60
UPC: 687471061121
Please log in to see your price
Dealer locator

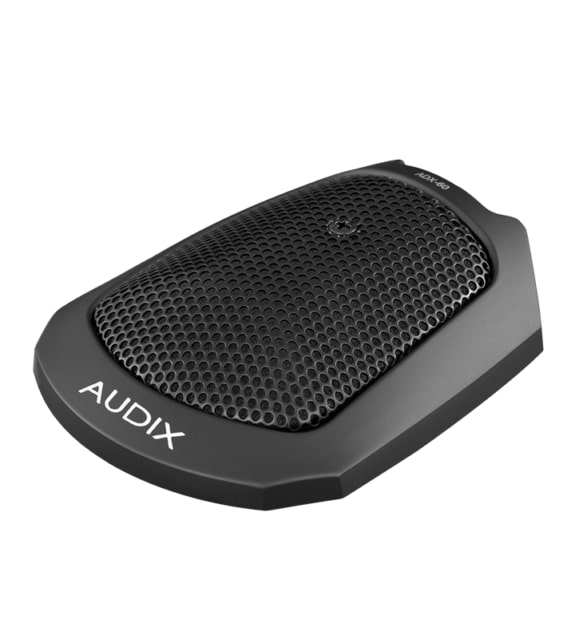

A professional pre-polarized condenser microphone, the ADX60 is designed for stage, studio, and broadcast applications. The ADX60 is highly sensitive and able to handle distance and area miking for various applications.

Transducer Type Pre-Polarized Condenser

Frequency Response 50 Hz – 18 kHz

Polar Pattern Cardioid

Output Impedance 250 ohms balanced

Sensitivity 9 mV / Pa @ 1k

Equivalent Noise Level <29 dB (A-weighted)

Signal to Noise Ratio n>65 dB

Maximum SPL =130 dB

Power Requirements None

Connector Miniature female XLR connector

Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Materials / Finish Die Cast Zinc / Black Finish

Weight 143 g / 5 oz

Length 80 mm / 3.1 in

more
About This Product

Description:

A professional pre-polarized condenser microphone, the ADX60 is designed for stage, studio, and broadcast applications. The ADX60 is highly sensitive and able to handle distance and area miking for various applications including conferences, plays, theatre, and acoustic instruments. The ADX60 has a uniformly controlled hemicardioid polar pattern and is designed to capture a designated area. This microphone requires a 9 – 52 V phantom power for operation and is equipped with a 25' cable and phantom power adapter. The ADX60 boundary condenser microphone is easy to position, durable, and is manufactured with a high performance 12 mm capsule, steel mesh grille, and space-saving mini-XLR connector.
Specifications
  • Barcodes
  • UPC
  • 687471061121
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 0.2214
  • Height In Inches
  • 5.1
  • Length in Inches
  • 12.5
  • Pounds
  • 1
  • Width Inches
  • 6
