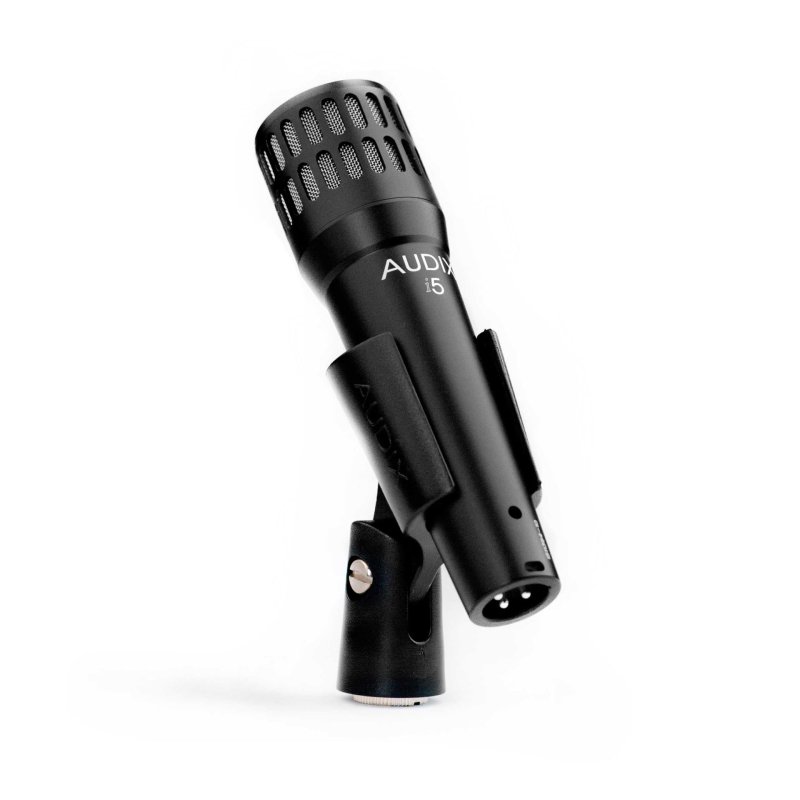

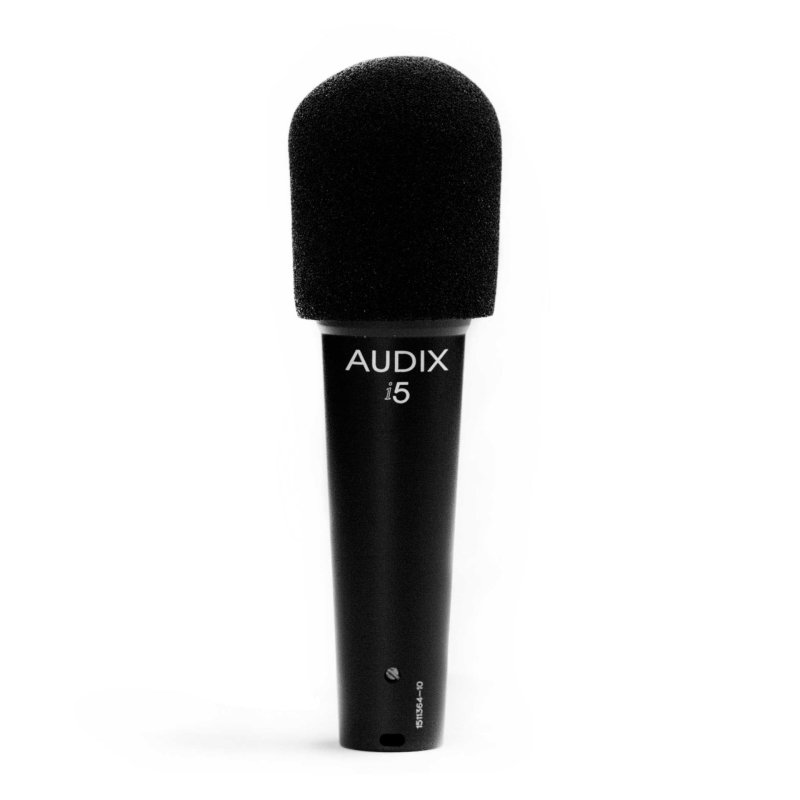

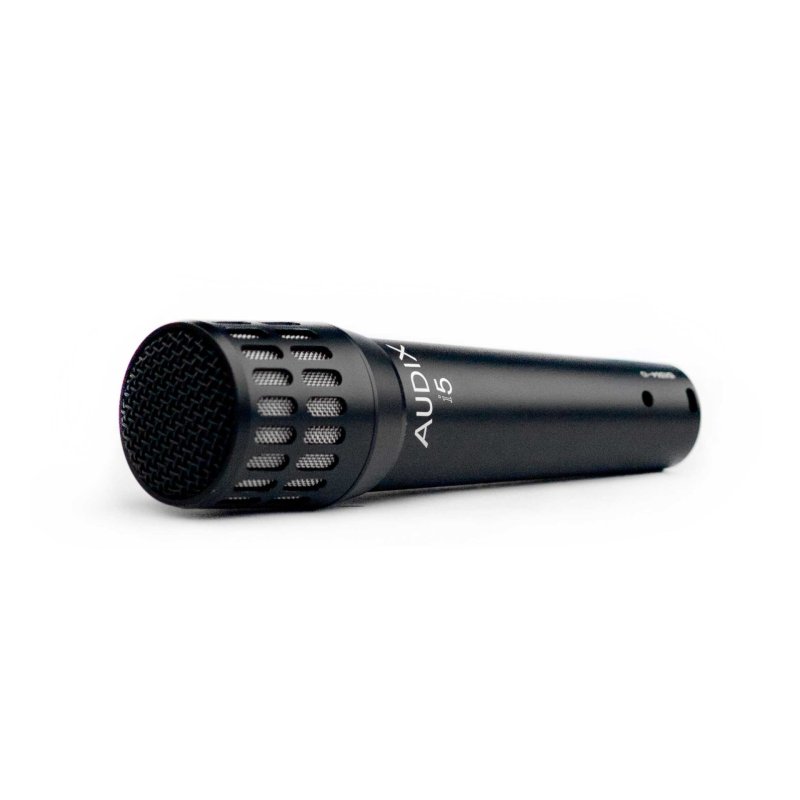

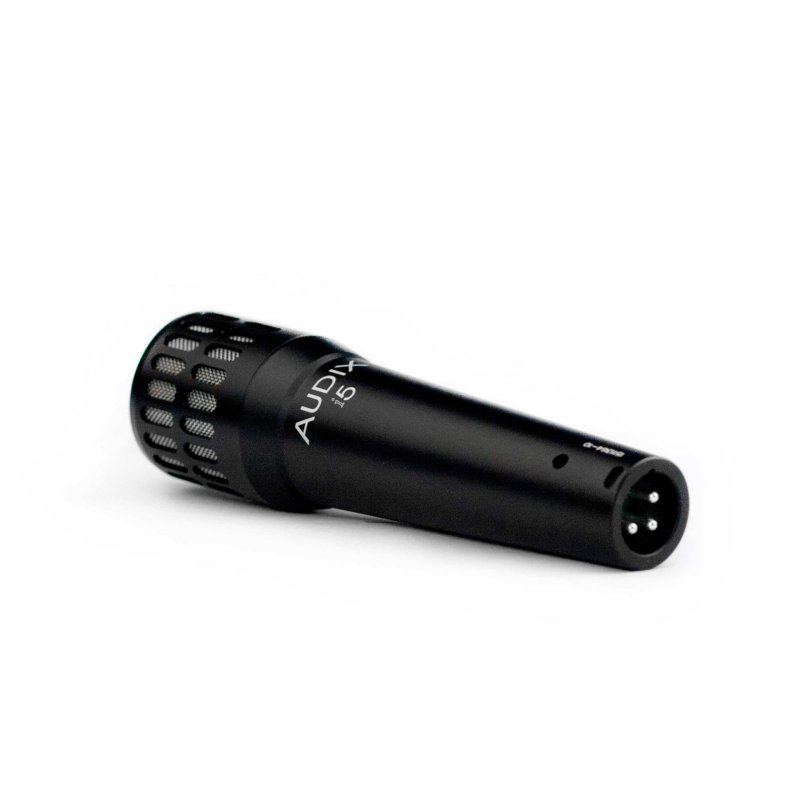

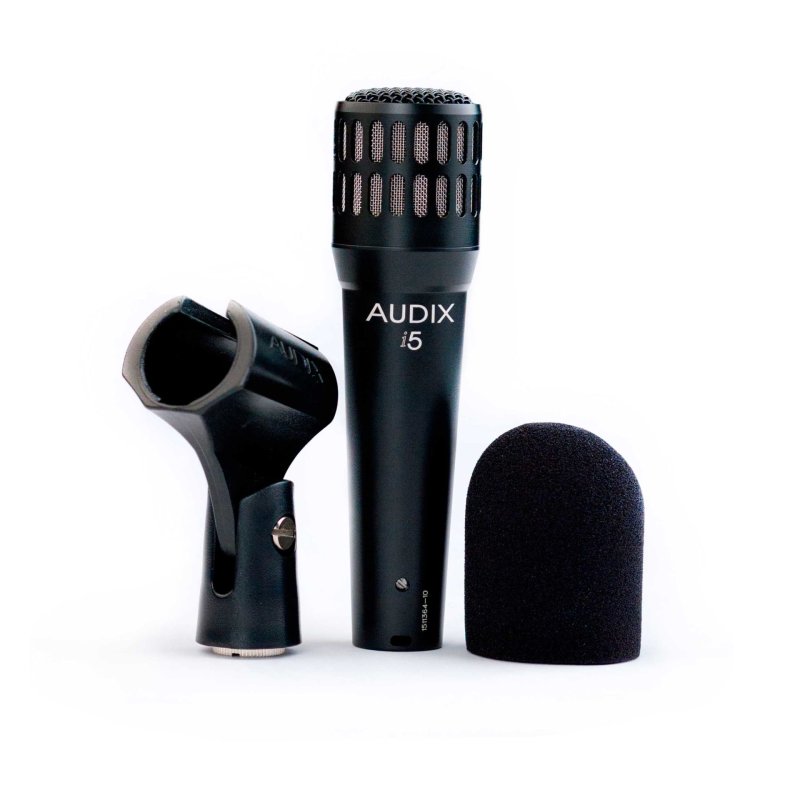

I5:
Transducer Type Dynamic
Frequency Response 50 Hz – 16 kHz
Polar Pattern Cardioid
Output Impedance 280 ohms
Sensitivity 1.6 mV / Pa @ 1k
Capsule Technology VLM Type B
Off-Axis Rejection >23 dB
Maximum SPL =140 dB
Power Requirements None
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Zinc Alloy / Black Finish
Weight 248 g / 8.7 oz
Length 141 mm / 5.6 in
D6:
Transducer Type Dynamic
Frequency Response 30 Hz – 15 kHz
Polar Pattern Cardioid
Output Impedance 280 ohms
Sensitivity 0.8 mV / Pa @ 1k
Capsule Technology WLM Type E
Off-Axis Rejection >20 dB
Maximum SPL =144 dB
Power Requirements None
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Machined Aluminum / Black Finish
Weight 254 g / 8.9oz
Length 117 mm / 4.6 in
