96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)

96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)

Name: 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
SKU: UWMIC9-TX9V2

Brand: Saramonic

Model: UWMIC9-TX9V2

UPC: 6971008020243

UHF Wireless Lavalier Microphone System (Kit 2)

UHF Wireless Lavalier Microphone System (Kit 1)

UHF Wireless Lavalier Microphone System (Kit 4)

UHF Wireless Lavalier Microphone System (Kit 8)

UHF Wireless and Audio Mixer Microphone System (Kit 13)

UHF Wireless and Audio Mixer Microphone System (Kit 12)

Please log in to see your price

Dealer locator

The Saramonic UwMic9 UHF wireless microphone system is intended for portable wireless operation and can be used in several environments for applications.

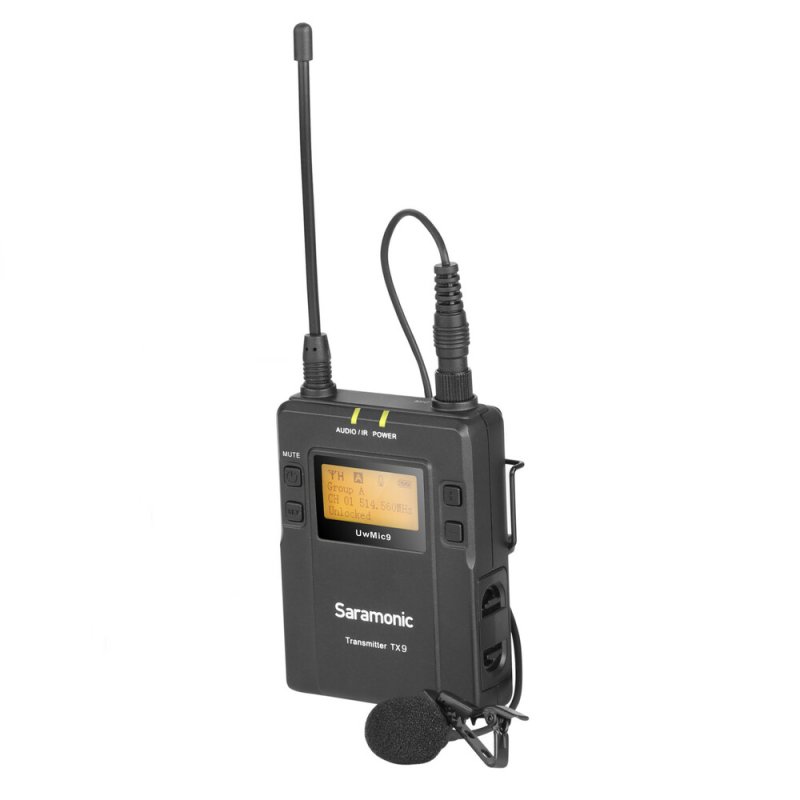

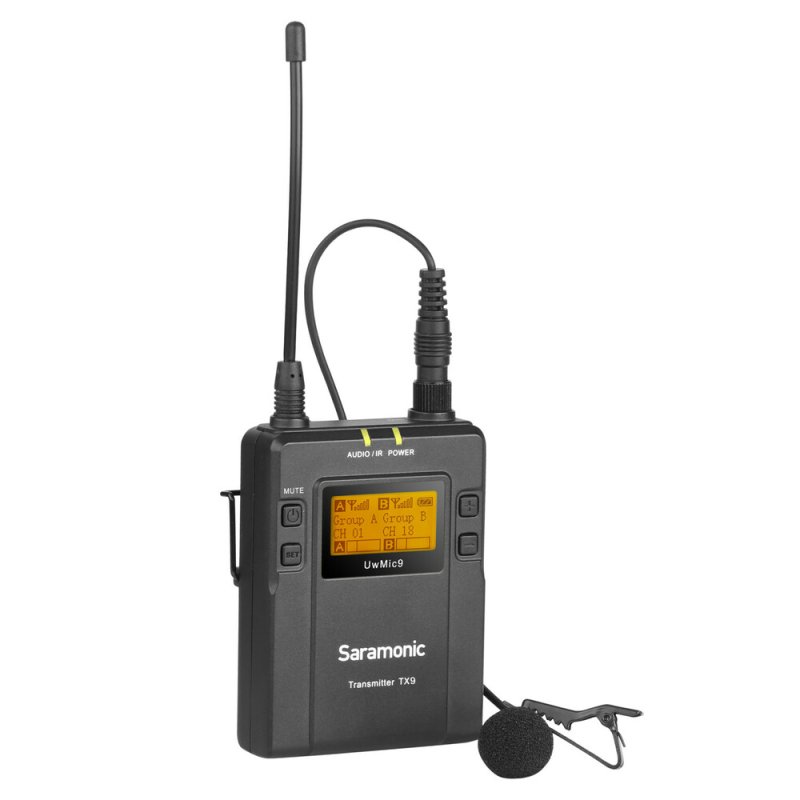

Broadcast-quality UHF wireless beltpack transmitter and lavalier microphone for the RX9 dual receiver (sold separately)

Works right out of the box with easy plug-and-play operation, lavalier mic, mic clip, foam windscreen, and belt clip are all included

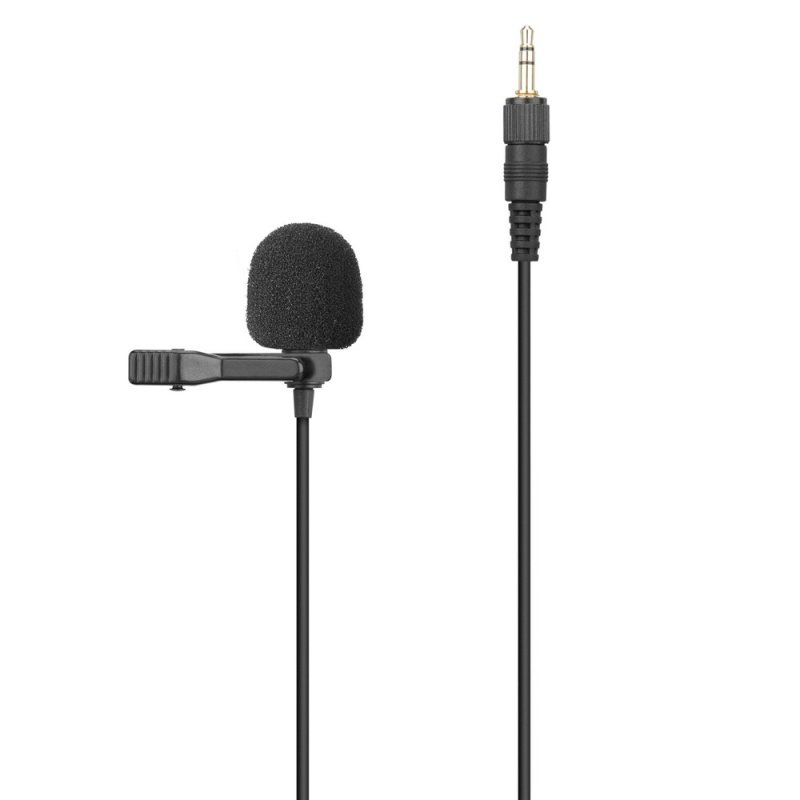

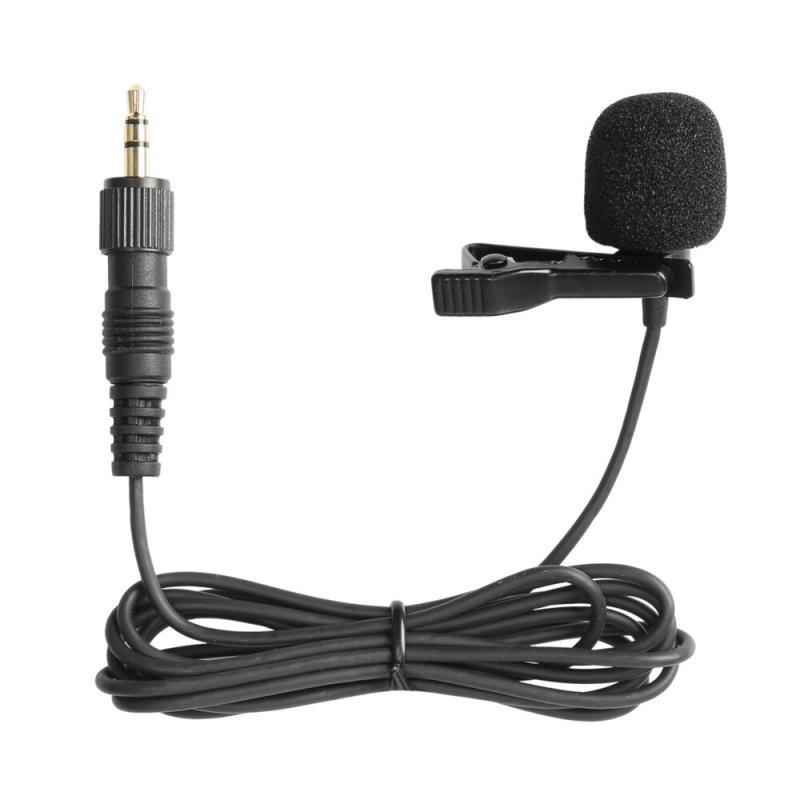

Professional SR-M1 omnidirectional lavalier microphone provides natural sound that’s ideal for video production

Durable all-metal construction with easy-to-read backlit LCD display and easy-to-use menus and controls

Offers up to 330-foot (100m) operating distance with infrared that makes it easy to sync channels with receiver

Channels: 96 selectable channels in 2 groups (A and B)

Wireless Frequency Range: 514 MHz - 596 MHz

Oscillator Type: PLL synthesizer

Input: Locking 1/8” (3.5mm) TRS mini-jack

Reference audio input level: –60 dBV (MIC input, 0 dB attenuation)

Antenna: 1/4 ? wire antenna

Signal to Noise Ratio: 70 dB or more

Voice Delay: 12 ms

Reference Deviation: +/- 5 kHz (-60 dBV, 1 kHz input)

Frequency Response: 40 Hz to 18 kHz (+/- 3dB)

About This Product

Description:

The Saramonic TX9 is a wireless UHF bodypack transmitter with clip-on omnidirectional lavalier microphone for the dual-channel UwMic9 RX9 and RX-XLR9 receivers (sold separately). The TX9 is extremely easy to use and is ideal for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and more. The TX9 features sturdy metal construction and delivers excellent sound quality in a low-cost package. New features and functions, same remarkable price The new generation of the UwMic9 features updated operating system, input level control, a sleek look and an unbeatable price. Included omnidirectional lavalier with added expandability The included SR-M1 omnidirectional lavalier microphone that’s ideal for use in video production because it captures sound equally no matter what direction it’s pointing when clipped to clothing. Designed to capture rich, crystal-clear sound it also features a locking 3.5mm connector to prevent the mic from accidentally being unplugged. Because the TX9 is wired with the standard 3.5mm TRS pin-out, allowing for use with hundreds of lavalier, headset, instrument and gooseneck microphones. Including the premium-quality Saramonic DK3 Lavalier, water-proof DK5 Lavalier, DK6 low-profile headset mic, or the UMIC-M2 mini-gooseneck mic. The TX9 also provides plug-in power, allowing the TX9 transmitter to accept other TRS mics, like mini-shotgun and on-camera microphones. Power, Range, Flexibility and Function With an impressive operating range of up to 330-feet (100m), the TX9 gives users the range, and power they need for professional applications. It features infrared syncing and features a 12-step input level control, allowing users to dial in the gain level for their needs and can also be used to transmit line-level audio, such as an output from a mixer.
