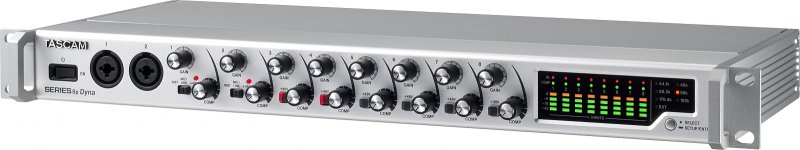

Eight-channel microphone preamp with eight analogue outputs and multi-channel optical outputs
Can be used as a standalone analogue mic preamp to expand any mixer or recording device
Ideal to add studio-ready audio inputs to a Tascam SERIES 102i/208i or US-20x20 via a single cable
Two S/MUX optical ports can output all eight channels up to a sampling rate of 96 kHz
8 outputs at 44.1/48 kHz
8 outputs at 88.2/96 kHz
4 outputs at 176.4/192 kHz
Tascam HDIA mic preamps use instrumentation amplifiers and have outstanding specifications, enabling them to provide clear, natural sound with super-low noise
Eight balanced XLR/TRS combo input jacks
Channels 1–2 on the front can be used for guitars, basses and other instruments with high-impedance output
48V phantom power can be provided to each input channel independently
Each input channel has its own single-knob analogue compressor with true bypass
25-pin D-sub and eight separate TRS analogue balanced outputs support a variety of connections with other analogue equipment

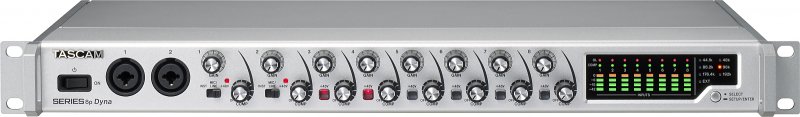

Indicators for analogue overload, compressor and digital signals as well as level meters on the front panel
Wordclock input and output (with THRU switch) for flexible audio clock synchronisation with other equipment
AC adapter included (Tascam PS-P1230, with four exchangeable plug inserts)
