64-Channel Digital Multitrack Audio Recorder

64-Channel Digital Multitrack Audio Recorder

Name: 64-Channel Digital Multitrack Audio Recorder
SKU: DA-6400

Brand: Tascam

Model: DA-6400

UPC: 043774031603

DP Series 64-Channel Digital Multitrack Recorder

Please log in to see your price

Dealer locator

The MH-8 from Tascam is a professional-quality rackmount headphone amplifier that allows 8 listeners to monitor a variety of sources. Each of the 8 channels has its own direct stereo input. There are also 2 stereo channels that can be shared to any of the

Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM

The perfect backup recording system for synchronized capture with Pro Tools systems

2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation.

(Note: HDD support currently under development)

Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units

Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer

AK-CC25 with TASCAM 240GB SSD drive included with unit

Hi-visibility Color LCD (320×120 pixels)

BWF support for storing time information with files

Two I/O slots for optional audio interface cards:

SMPTE LTC timecode input and output for location synchronization

Firmware upload over USB port

Parallel remote control input

RS-422 serial remote control (9-pin serial protocol compliant)

Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network

SNTP server support for automatic adjustment of the internal clock over a network

Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru

EIA 1U rackmount size

IEC 3-pin inlet

iPad and computer applications for remote control

AC power redundancy built in (DA-6400dp only)

About This Product

Description:

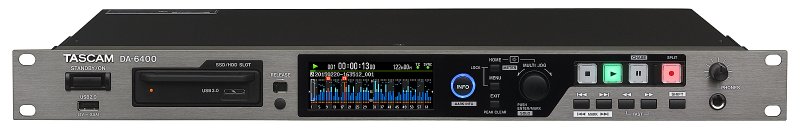

TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording. Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections. I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections. This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come. No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM’s DA-6400 solid-state 64-track recorder.

Specifications
