Specifications
Keyboard: 61 keys (professional touch sensitive keys PTK II)

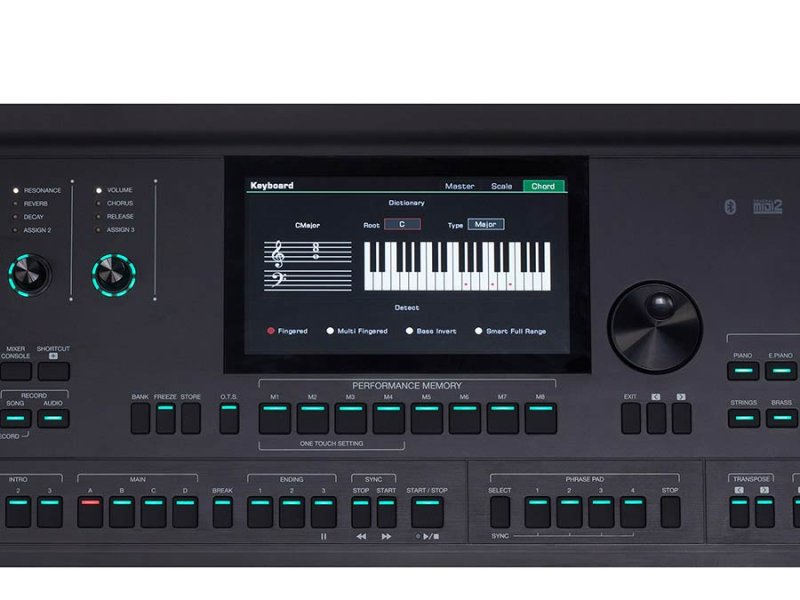

Display: 7” touch screen (supports 7 languages)
Max Polyphony: 256
Sound/Voice: 1100 + 256 GM2 + 500 users (max)
Style: 280 + 1000 users (max)
Demo Songs: 3
Music Library: 80 + 1000 users max (Album), 50 + 512 user (Music Library)
Amplifier: 2 x 15 watt
• 2 x 25 watt
Speaker: 2 x 3 cm
• 2 x 12 cm
Dimensions: 1007 x 392 x 130 mm
Weight: 9.4 kg
Power: DC 15
Layer/Split: L
• R1
• R2
• R3
Style Control: Start/Stop
• Sync start/Sync stop
• Intro 1/Ending 1
• Intro 2/Ending 2
• Intro 3/Ending 3
• Main A/Fill in A
• Main B/Fill in B
• Main C/Fill in C
• Main D/Fill in D
• Break
• Auto fill in
• Chord on/off
• Fade in/out
• Q.S. link
Style Creator: Yes
Chord Type: 39
Reverb: 45 types
• 30 users
Chorus: 76 types
• 30 users
Effect: Channel EQ
• Compressor
• D.A.S.
• IFX (48 preset + 30 users)
• Mic effects (EQ, compressor, 47 DSP effects, 3 vocoder, 3 vocal harmony)
Master EQ: 5 + 30 users
Mixer: Yes
Sequencer: 500 user songs max. (16 tracks)
Performance Memory: 8 x 200 banks
• Lock Q.S./O.T.S. Yes
Performance Enhancement: Arpeggiator
• Harmony
• Slicer
Audio Playback: MP3
• WAV
• AAC
• Vocal remover
• Audio tempo
• Audio transpose
Audio Recorder: MP3
• WAV (44.1Hz / 16 bit)
Assignable Controller: 2 x pedals
• 3 x knobs
• 3 x switches
• 1 x joystick
Pitchbend: Yes
Modulation: Yes
Pitch Adjustment: Transpose
• Octave
• Tuning
• Scale tuning (9 + 30 users)
Metronome: Yes
Tempo: 30-280
• Tap tempo
Other Control: Touch sensitive
• Sustain
• Sound edit
• Chord reference
• Phrase pad (4 x 180 banks + 500 users max.)
• Internal storage (approx. 768MB sample expansion)
Connection: Bluetooth MIDI & Audio
• 1 x USB-A (Device)
• 1 x USB-B (MIDI & Audio)
• MIDI in / out
• Headphone jack (1 x 1/4”)
• Input jack (2 x 1/4” mono)
• Output jacks (1 x 1/4” L / L+R
• 1 x 1/4" R)
• Mi
