Power-handling, nominal (RMS): 300 W
Power-handling, program: 600 W
Power-handling, peak: 1200 W
Sensitivity 1 W/1 m (full space): 97 dB (200 Hz - 10 kHz)
Frequency response +/- 3 dB (processed): 155 Hz - 18 kHz
Frequency response -10 dB (processed): 130 Hz - 19 kHz
Max. SPL @ 10 % THD (EN 60268-21, full space): 127 dB
Directivity (horizontal x vertical): 120° x 15° (asymmetrical, j-shaped)
Electrical impedance: 16 ohms
Low/mid transducer: 10 x 3" fullrange drivers with ferrite magnet and 0.8" voice coil
High frequency driver: not applicable
Crossover/cut-off frequency: not applicable
DSP filters: Filters for Lab.gruppen IPD/IPX and Lake, Powersoft Armonía+, QSC Q-SYS and filters in tabular form

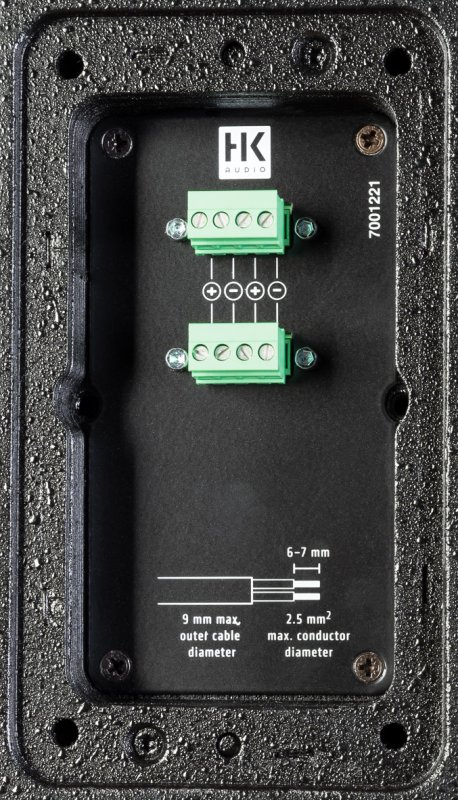

Connections: 2 x 4-pole connectors, with cover plate and PG glands
Mounting points: 24 x M5
Cabinet material: Birch plywood
Front grille: Ball impact resistant steel grille, powder coated, with acoustic fabric (dirt and water repellent)
Finish: Two-component coating, black and white as standard, over 40 colors possible
Certifications: Voice alarm (EN 54-24:2008), IP 66 (EN 60529), ball impact resistance (DIN 18032-3)
Optional accessories: U-bracket, swivel and tilt bracket, rigging rail, pole support and ceiling mount
Dimensions (W x H x D): 120 x 820 x 165 (top) and 119 (bottom) mm / 4.72 x 32.28 x 6.49 (top) x 4.68 (bottom) in
Weight: 10.2 kg / 22.5 lb
