Concept Passive 2-way mid/high unit
Cabinet principle Bass reflex
Power handling RMS 300 W
Power handling program 600 W
Power handling peak 1200 W
Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)) 8 ohms
Max. SPL average (1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space): 119 dB
Max. SPL peak (1 m, 10 % THD @ 1.3 kHz, full space): 123 dB
Sensitivity 1 W/1 m (80 Hz - 20 kHz, full space): 91 dB
Crossover frequency: 2.9 kHz
Frequency range -6 dB: 71 Hz - 20 kHz
Frequency range -10 dB: 67 Hz - 20 kHz
Dispersion angle -6 dB (horizontal x vertical): 80° x 60°
Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
IP protection class (EN 60529): not specified
Low-/mid frequency: 1x 10" Sica cone speaker with ferrite magnet and 2" voice coil
High frequency: 1 x 1" Sica compression driver with ferrite magnet and 1" voice coil
Crossover: High pass: 18 dB/octave, low pass: 18 dB/octave
High frequency protection circuit: Self-healing PTC fuse
Horn: BEM-optimized constant directivity horn, rotatable

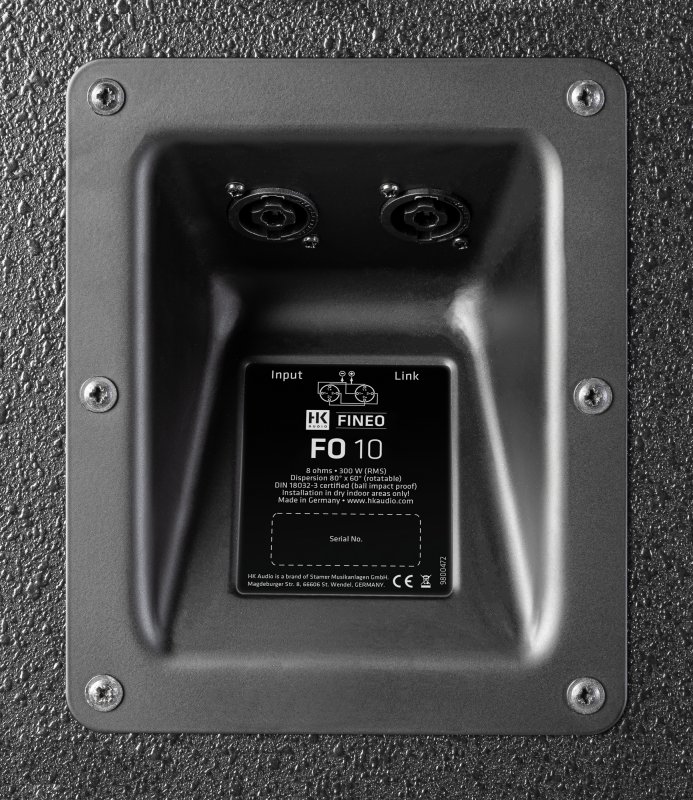

Input: 1 x NL4 Speakon
Output/parallel output: 1 x NL4 Speakon
Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)
Lab.Gruppen: IPX
LEA Professional: Sharkware
Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
Mounting points: 2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M4 rear
Cabinet material: MDF
Cabinet surface: 1-component acrylic enamel
Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

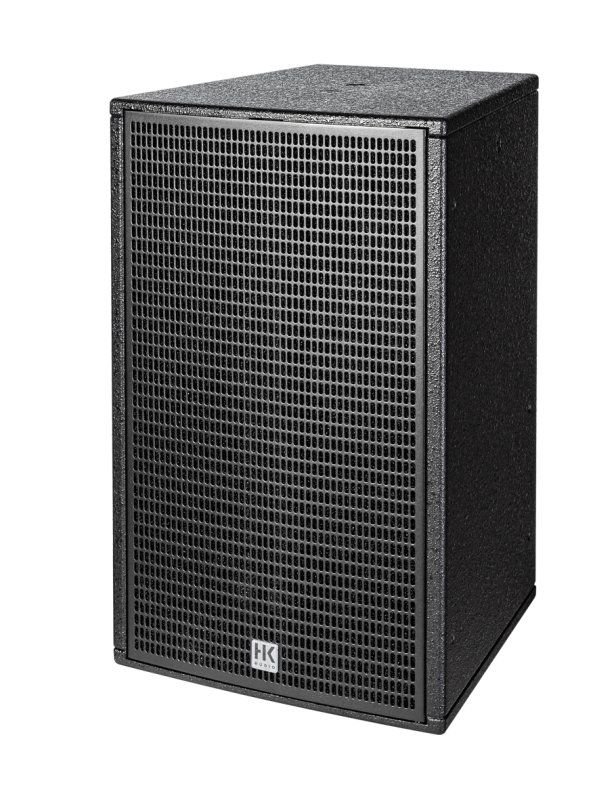

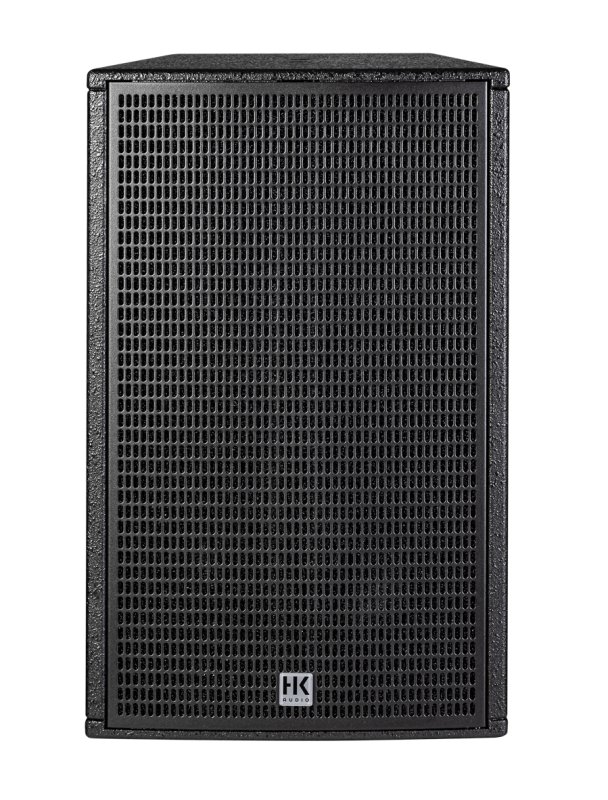

Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
Optional accessories: U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size S for VESA MIS-D, 100 x 100 mm), AP-8
Rear hole p
