Max. SPL peak @ 10% THD: 123 dB half space
Frequency response +/- 3 dB: 65 Hz – 18 kHz
Frequency response -10 dB: 55 Hz – 20 kHz
Power amplifier output: 60-watt Class D
Run time: Up to 11 h (with two fully charged batteries)
Active protection circuits: Peak and RMS sound limiter (separated for HF and LMF)
Low/mid speaker: 1 x 8", 1" voice coil
HF driver: 1", 1" voice coil
Horn characteristics: 70° x 70°
Crossover frequency active: 2.5 kHz

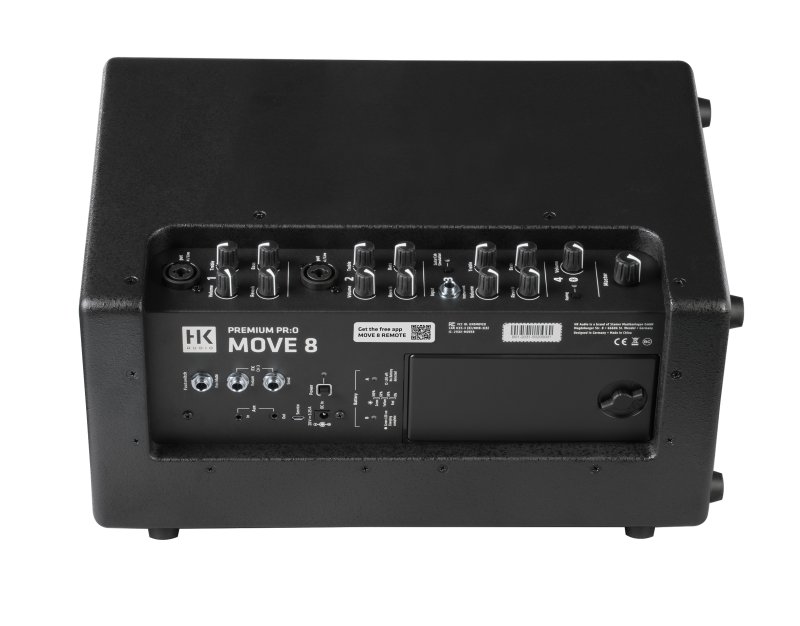

Audio connectors in: 2 x XLR/jack combo in (Mic/Line), 1 x jack (Instr.), 1 x stereo mini jack Aux In
Audio connectors out: 1 x stereo mini jack Aux Out
Equalizer: 2-band EQ for channels 1–3 (channel 4 per app)
Effects: Reverb (channels 1-3); Celestion Impulse Response guitar cab simulation on channel 3
Setup angle: 33°
Pole mount: 1 x 35 mm
Carrying handles: 1 SingleGrip, integrated
Housing: MDF
Surface: Black acrylic enamel
Front grille: 1.5 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 29 x 41 x 28 cm
Weight: 8.5 kg
Battery Capacity: 5,200 mAh
Dimensions (WxHxD): 8 x 3 x 8.3cm
Weight: 250 g
Charge time in MOVE 8: approx. 5 hours
Charging time with optional quick charger: approx. 2 hours
