Heritage Audio

500 Series 6-Slot Rack Cabinet with Power Handling

Model: HAOST6V2
UPC: 609832678137
Please log in to see your price
Dealer locator

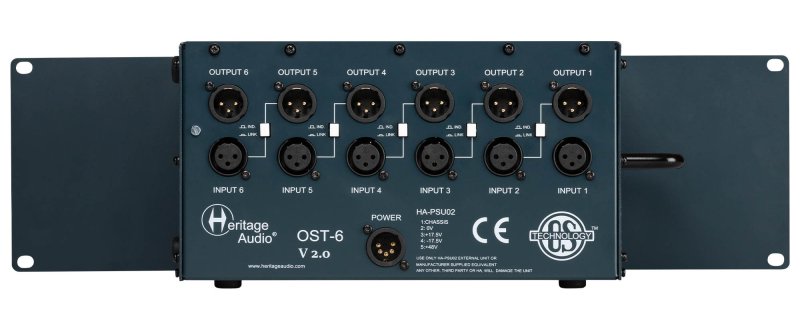

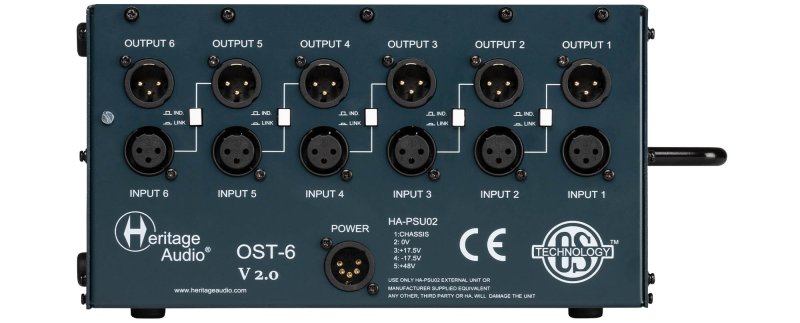

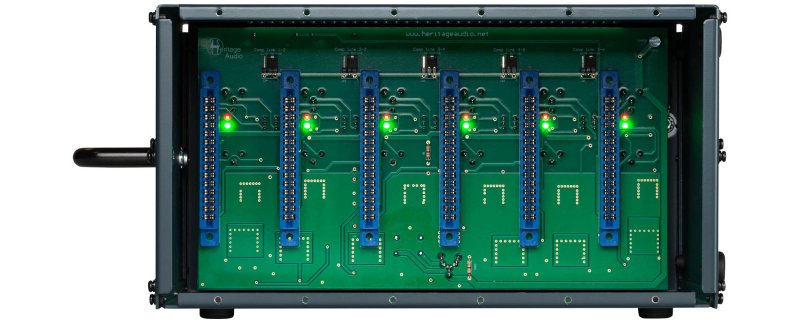

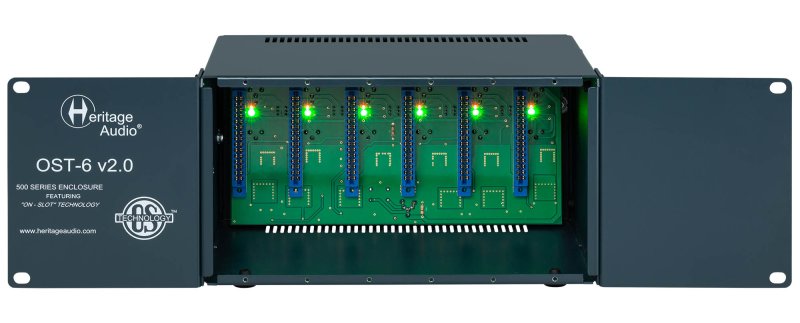

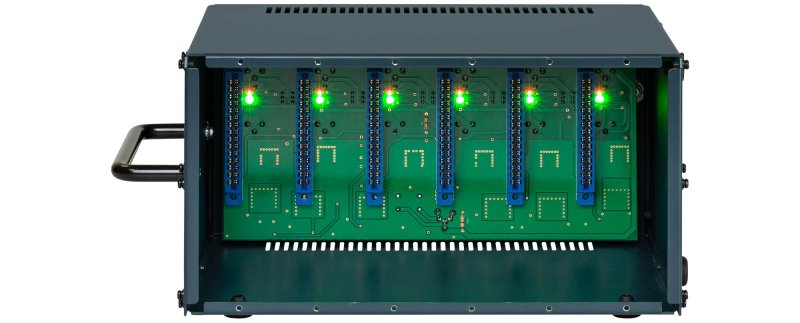

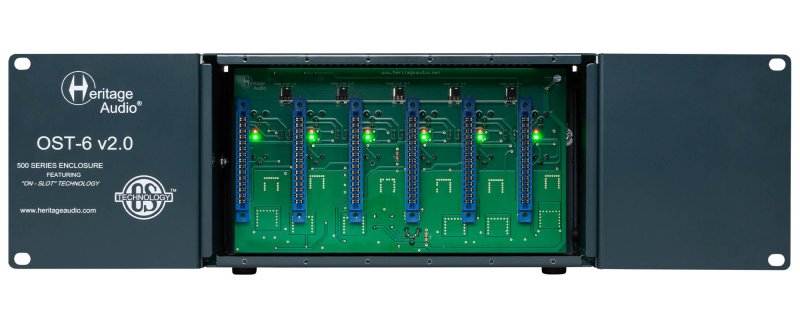

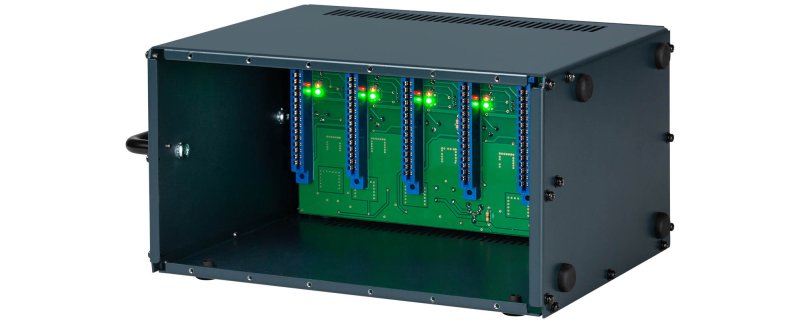

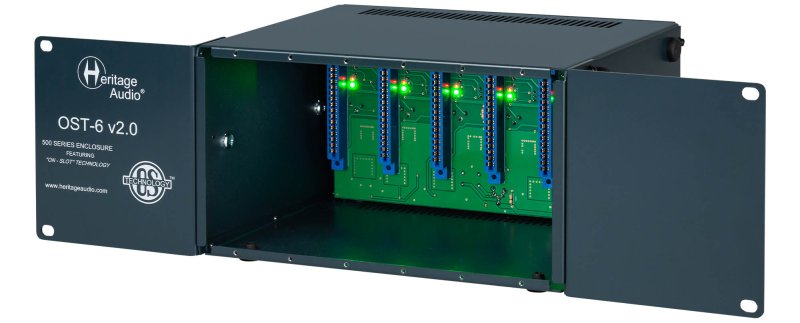

The OST-6 V2.0 500 series enclosure is designed for racking any and all 500-series modules and devices, including ‘double wide’ modules and even the most demanding Class A and vacuum tube designs.

On Slot Technology version v2.0.

Maximum audio rails current: 1.8 A per rail (2,0 amps non-continuos), or 400 mA per slot, whatever is reached first.

Maximum phantom power current: 140 mA.

Operating voltage: Universal 100-240 V AC.

Dimensions (W x H x L): 245 mm (284 mm with handle) x 134 mm x 185 mm.

Weight: 2.368 Kg.

more
About This Product

Description:

The OST-6 V2.0 500 series enclosure is designed for racking any and all 500-series modules and devices, including ‘double wide’ modules and even the most demanding Class A and vacuum tube designs. The OST-6 V2.0 enclosure features Heritage Audio’s On Slot Technology, providing maximum protection, filtering, and isolation to each channel. While most 500-series enclosures on the market have a relatively simple power supply design essentially feeding every channel in parallel, each channel of the OST-6 V2.0 enclosure has its own power supply, individually regulated and isolated from the rest. This ensures that every 500-series module installed will perform at its peak potential, and that no ‘power hungry’ or even a faulty module will compromise the performance of another. In addition to reducing interference, many 500-series devices actually exhibit lower self-noise and better performance when racked in the OST-6 V2.0 enclosure, especially mic preamps. A new and exciting feature in the V2.0 model is the Link feature, allowing each channel to be linked over to the next at the push of a button (on back panel), no patch cables required! As with all Heritage Audio products; the 500 Series OST-6 V2.0 enclosures are built utilizing the most cutting edge methods in manufacturing and design, without ever compromising audio quality or cutting corners — all at the Heritage Audio headquarters in Spain.
Specifications
  • Barcodes
  • UPC
  • 609832678137
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 999
  • Each
  • Cubic Feet
  • 3.4716
  • Height In Inches
  • 13.8
  • Length in Inches
  • 20.7
  • Pounds
  • 9.8
  • Width Inches
  • 21
