Black Lion Audio

6-In/Out Class-Compliant USB Audio Interface

Model: REVOLUTION-6X6
UPC: 753459506523
Please log in to see your price
Dealer locator

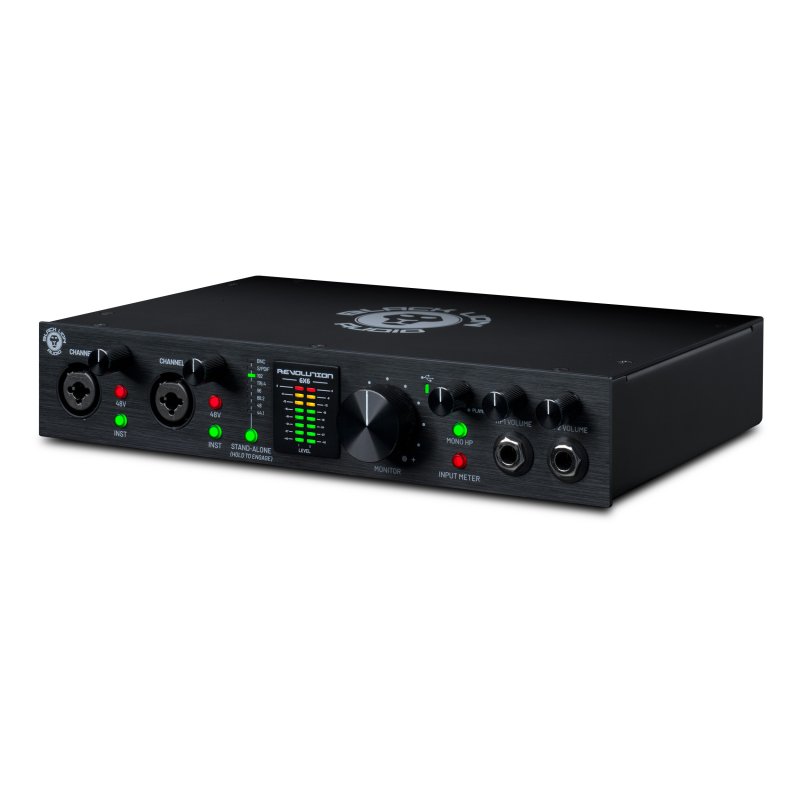

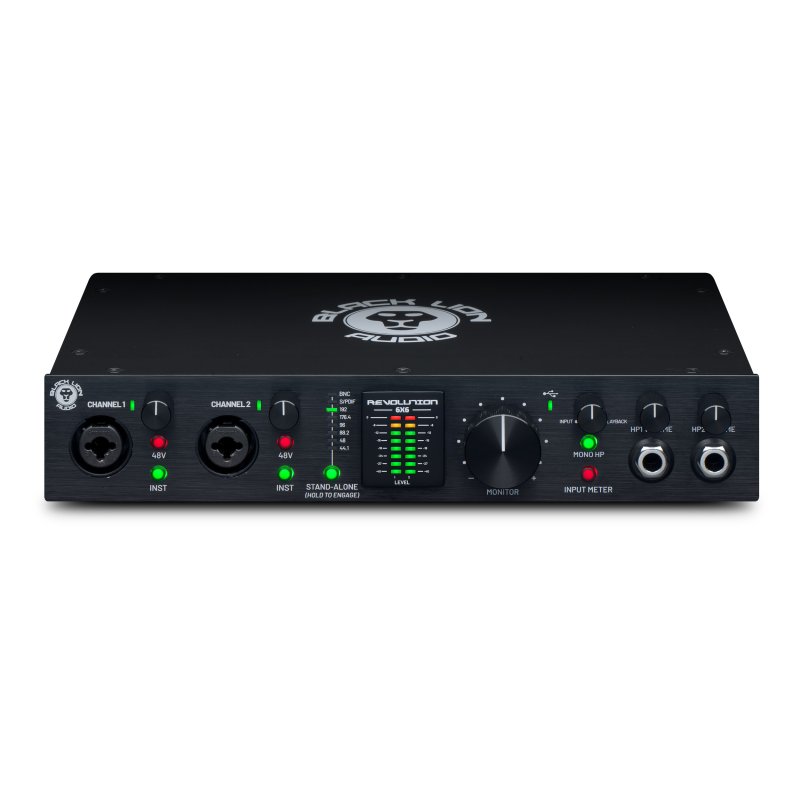

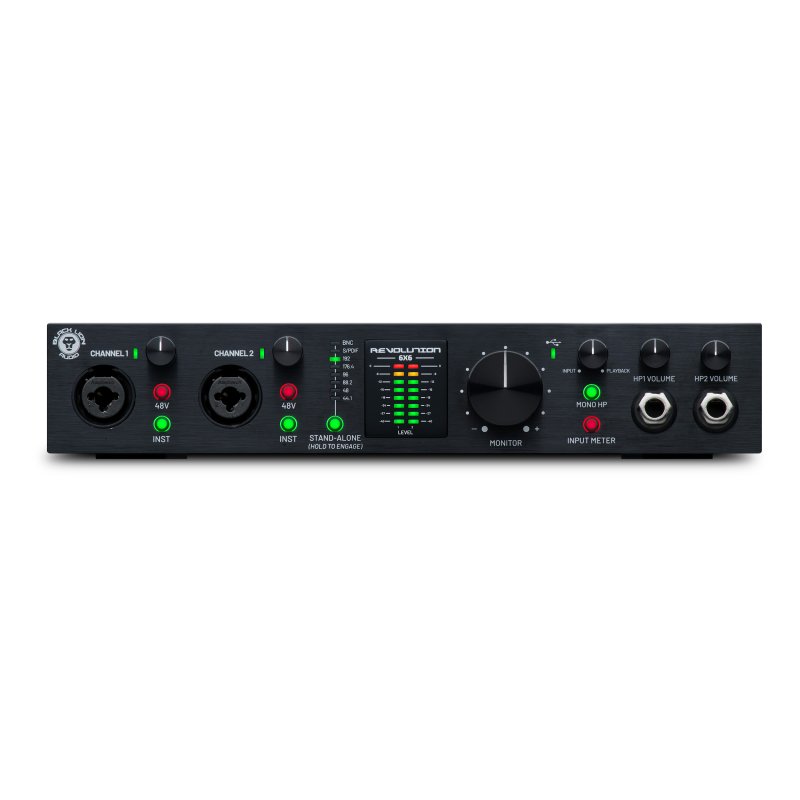

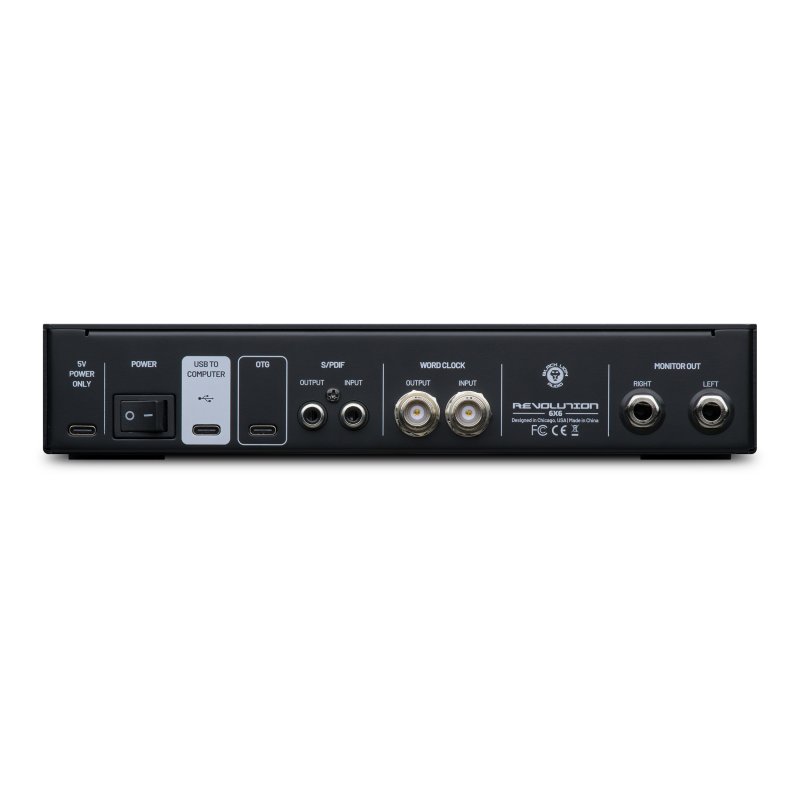

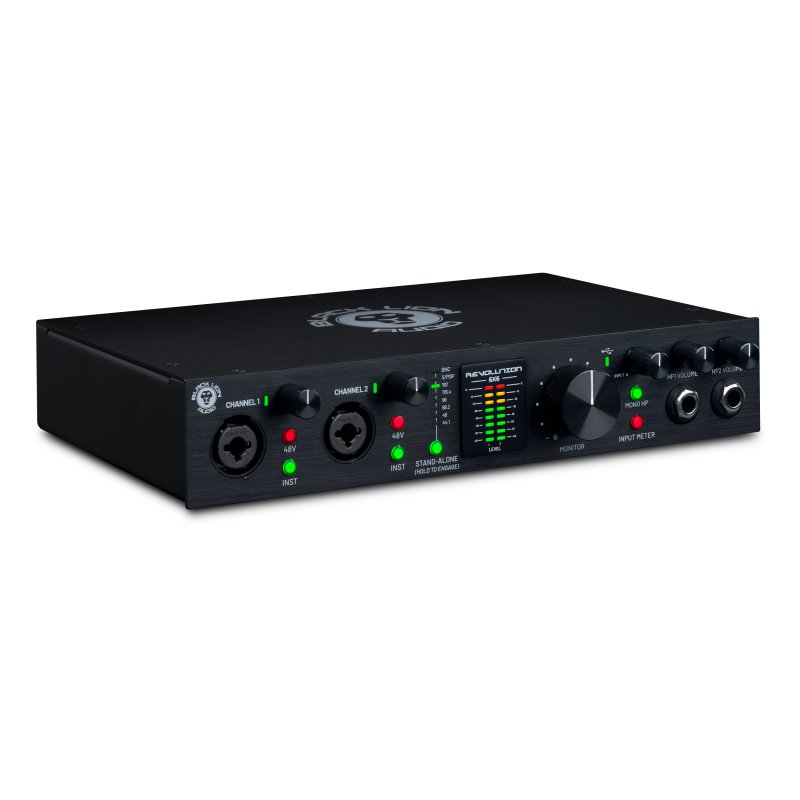

The Revolution 6×6 is an all-purpose studio dynamo that can serve as a master clock, a standalone DAC and ADC, and a 6-in, 6-out class-compliant USB interface with audio quality worthy of the Revolution name.

Line Input

Input Impedance = 15.49 kO

Maximum Input (maximum input level @ gain min) = +21.562 dBu

maximum input level @ gain max = -32.84 dBu

Gain Range = 59.056

Frequency Response = +/-0.018 dB

= HD + N = 0.00106%

Dynamic Range = 110.194 dB

Crosstalk = -96.073 dB

Line Outputs

Output Impedance = 47 O

Max Output Level = +12.398 dBu

Frequency Response = +/-0.098 dBu

= HD+N = 0.00088%

Dynamic Range = 106.404 dB

Instrument Input

Input Impedance = 1 MO

Gain Range = 59.2415

Frequency Response = +/-0.046 dB

= HD + N = 0.00212%

Dynamic Range = 103.585 dB

Crosstalk = -96.760 dB

Headphone Outputs

Output Impedance = 10 O

Maximum Signal Output = 2.788 Vrms

Frequency Response = +/-0.117 dB

more
About This Product

Description:

Beyond what you expect from an audio interface. The Revolution 6×6 is an all-purpose studio dynamo that can serve as a master clock, a standalone DAC and ADC, and a 6-in, 6-out class-compliant USB interface with audio quality worthy of the Revolution name. Enjoy world-class clocking and low-noise conversion while tracking to the included Studio One Artist. Use the USB OTG connection to sample audio from your phone or tablet… or send audio from your laptop to your mobile device and stream your performance live online. Sync your other hardware devices via our proprietary Macro-MMC clocking — all while treating your music with the highest audio quality imaginable. Beyond what you expect from an audio interface. The Revolution 6×6 is an all-purpose studio dynamo that can serve as a primary word clock, a standalone DAC and ADC, and a 6-in, 6-out class-compliant USB interface with audio quality worthy of the Revolution name. Enjoy world-class clocking and low-noise conversion while tracking to the included Studio One Artist. Use the USB OTG connection to sample audio from your phone or tablet… or send audio from your laptop to your mobile device and stream your performance live online. Sync your other hardware devices via our proprietary Macro-MMC clocking — all while treating your music with the highest audio quality imaginable. Audio interfaces don’t sound better than this. Revolution 6×6 is a class-compliant, bus-powered USB audio interface with industry-leading signal quality based on Black Lion’s years of experience in audio interface modification. Record anything thanks to balanced XLR, line-level, and instrument-level input options. Connect pro studio monitors or use its two plenty-loud, crystal-clear, mono-summable headphone outputs with direct monitoring mix control. Integrate external gear via the S/PDIF connection and USB OTG.
Specifications
  • Barcodes
  • UPC
  • 753459506523
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 5
  • Each
  • Cubic Feet
  • 0.4363
  • Height In Inches
  • 5.8
  • Length in Inches
  • 12.5
  • Pounds
  • 5.45
  • Width Inches
  • 10.4
