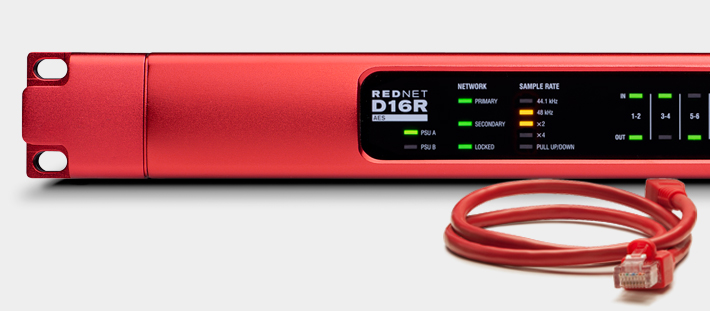

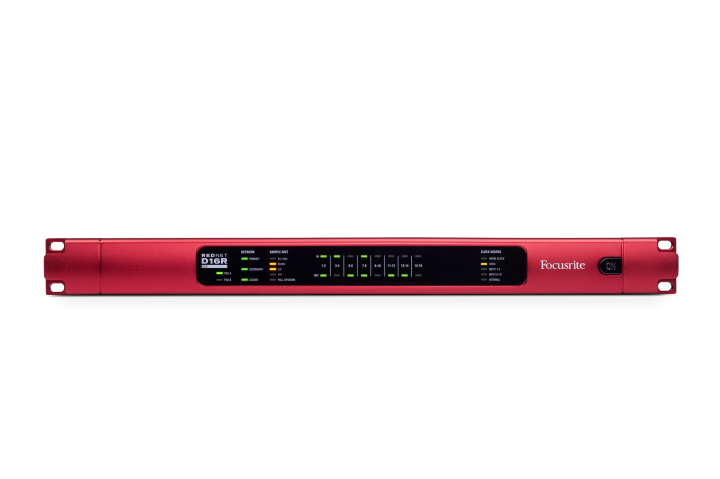

16 Channel bi-directional RedNet AES3 Interface for Dante Networks
Power supply and Ethernet redundancy with auto switchover in case of failure, and locking etherCON network connectors.
Sample rate conversion allows external equipment to run at any sample rate
Compact 1U chassis allows maximum functionality in minimum rack space

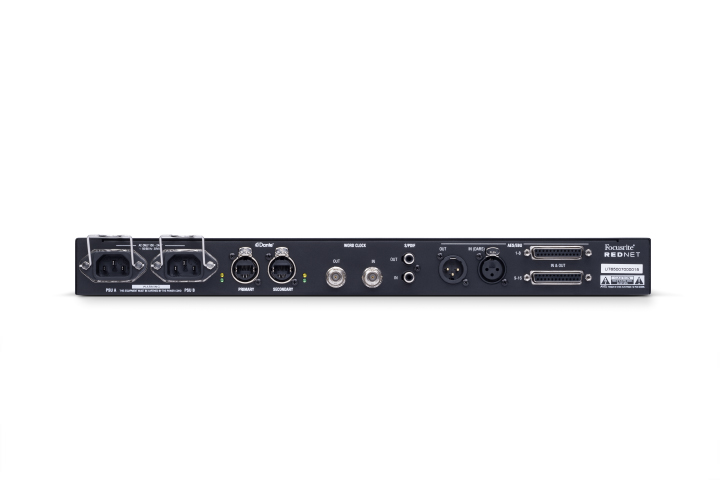

Two 8-channel AES59 combined I/O DB25 connections, plus a pair of XLR3 connectors duplicating channels 1 & 2
Rear panel XLR input connector either be used as a DARS input or as a traditional AES3 audio input
S/PDIF input and outputs provided on RCA connectors; ideal for connecting CD players or solid-state recorders
Word Clock I/O on BNC connectors allows synchronisation of the Dante network to house clock, or syncing external equipment to the Dante network
Comprehensive remote control software with powerful graphic user interface
