5 Channel Wireless Microphone Upgrade Pack with Diversity Fin® IPX Antenna, Black
The 5 Channel Wireless Microphone Upgrade Pack with Diversity Fin® IPX Antenna is the ultimate turnkey RF solution for professionals who need rock-solid wireless performance in the most demanding environments. This comprehensive bundle combines the rugged, IP-rated weather-resistant Diversity Fin IPX Antenna with the high-performance DISTRO5 Antenna Distribution System, premium RG8X cabling, and the specialized OCTO Cable for streamlined power management.
By integrating patented cross-polarized technology with centralized RF and power distribution, this bundle eliminates the need for multiple "shark fin" paddles and messy "wall wart" power supplies. It is the definitive upgrade for touring rigs, outdoor festival stages, and permanent outdoor installations.
KEY FEATURES
- Turnkey RF Management: Provides everything needed to support up to five wireless receivers from a single antenna position.
- IP44-Rated Protection: The Diversity Fin IPX features a weather-resistant seal and downward-facing BNC connectors, built to survive rain and dust.
- Patented Cross-Polarization: Combines LPDA and dipole elements to capture both vertical and horizontal signals, effectively eliminating multi-path dropouts.
- OCTO Cable Power Integration: Simplifies your rack by using the OCTO cable to distribute DC power from the DISTRO5 to up to 8 individual wireless receivers.
- Reduced Rack Clutter: Replaces 10 individual whip antennas and multiple power adapters with one streamlined, professional system.
- Expansion Ready: Easily cascade any pair of RF outputs to the RF inputs of a second DISTRO5 for up to 9 channels in a 1RU rackspace.
- High-Quality Signal Path: Includes two 25-foot RG8X coaxial cables to ensure low-loss signal transfer between the antenna and your rack.
WHY CHOOSE THIS BUNDLE?
The Diversity Fin IPX Bundle is designed to solve the two biggest headaches in wireless audio: signal dropouts and cable chaos.
The IPX antenna is uniquely forgiving of transmitter orientation— the cross-polarized design maintains a constant lock on the signal regardless of a performer’s position on stage. Inside the rack, the combination of the DISTRO5 and the OCTO Cable transforms a "rat's nest" of wiring into a clean, reliable power and signal hub, allowing you to focus on the performance rather than the gear.
BUNDLE COMPONENTS & SPECIFICATIONS
- Diversity Fin IPX Antenna: 470–928 MHz, IP44 Rated, Cross-Polarized
- DISTRO5 Antenna Distribution System: 5-Way RF Splitter with High-Quality Internal Power Supply
- OCTO Cable: 8-Output DC power distribution cable for wireless receivers
- RG8X Coaxial Cables: (2) 25-foot low-loss cables with BNC connectors
- System Impedance: 50 Ohm
- Mounting: 5/8”-27 Threaded Mount (EU adapter included)

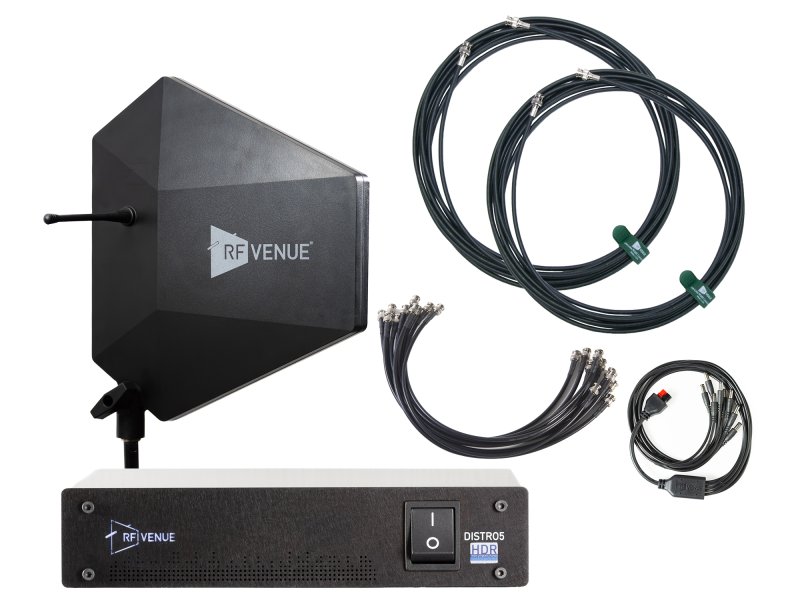

IN THE BOX
- (1) Diversity Fin IPX Antenna
- (1) DISTRO5 Antenna Distribution System
- (1) OCTO Cable (DC Power Distribution)
- (2) RG8X 25-foot Coaxial Cables (Black)
- (2) Spare Dipole Antennas for IPX
- (1) Dipole Storage Case
- (1) Threaded EU Microphone Stand Adapter
PRO TIP: This bundle is the ideal for touring and permanent outdoor installation. If your project involves an indoor wallmount installation where aesthetics are the priority, check out the RF Venue Diversity Architectural Antenna DISTRO5 Bundle.
