5.1 Rackmount Monitoring System

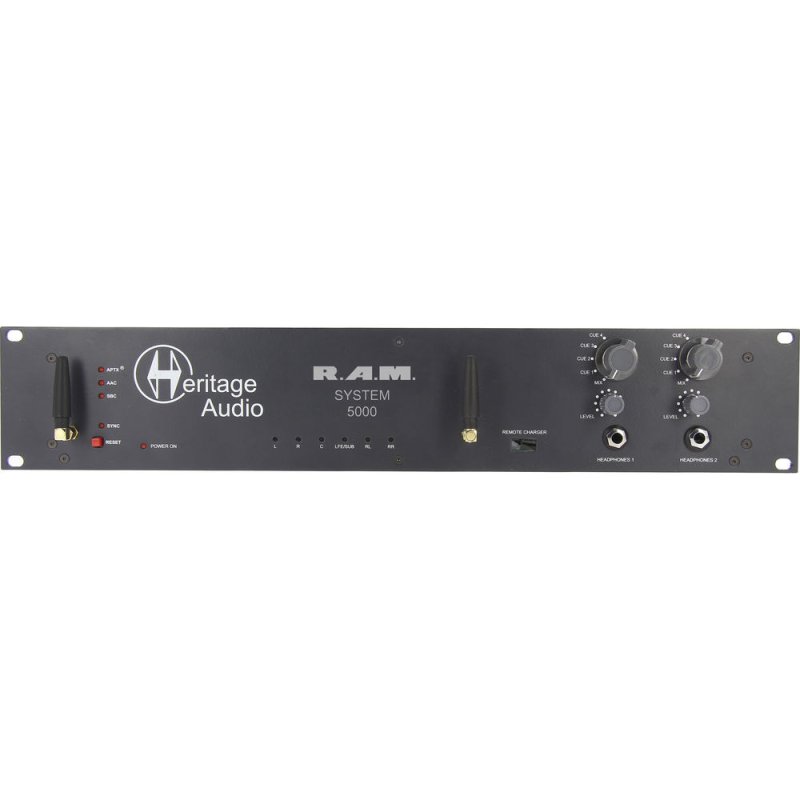

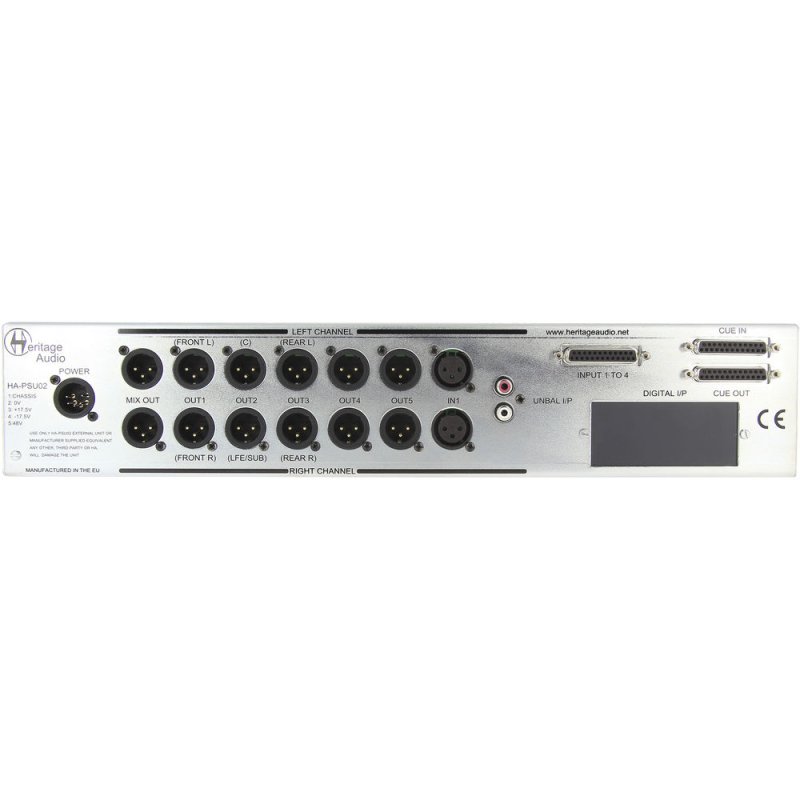

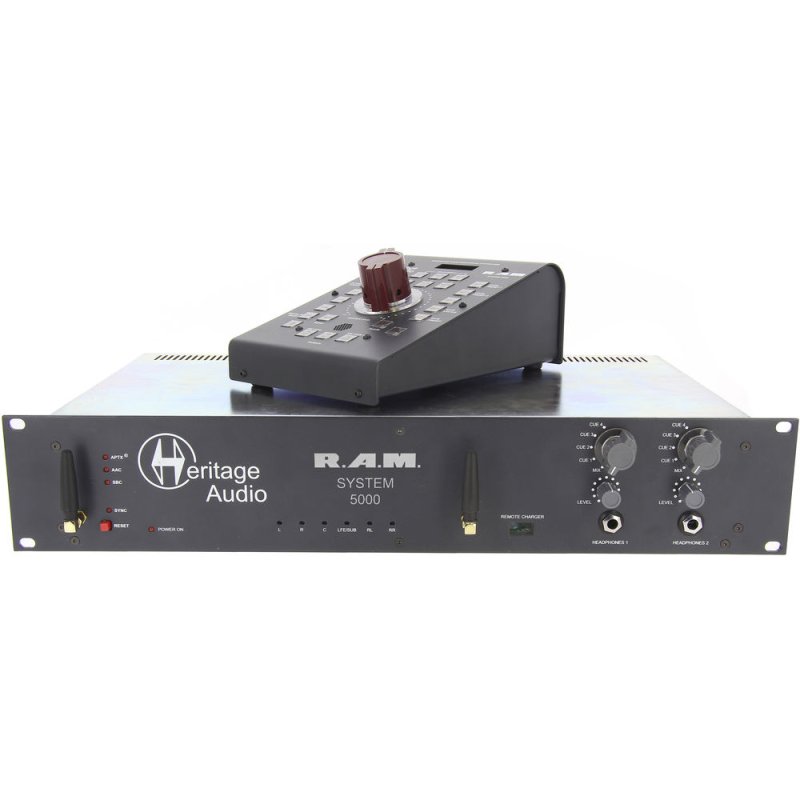

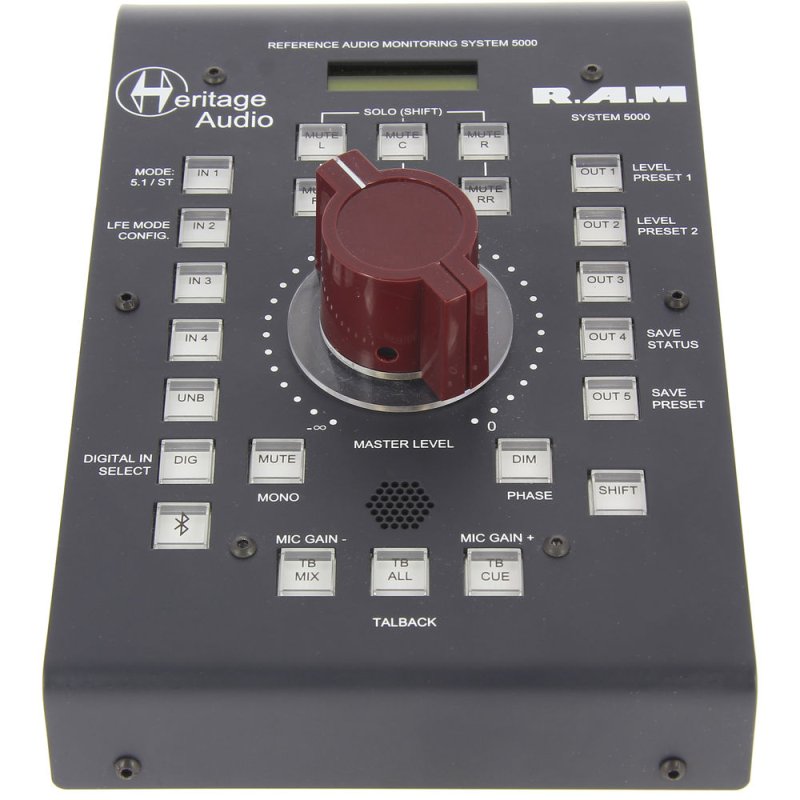

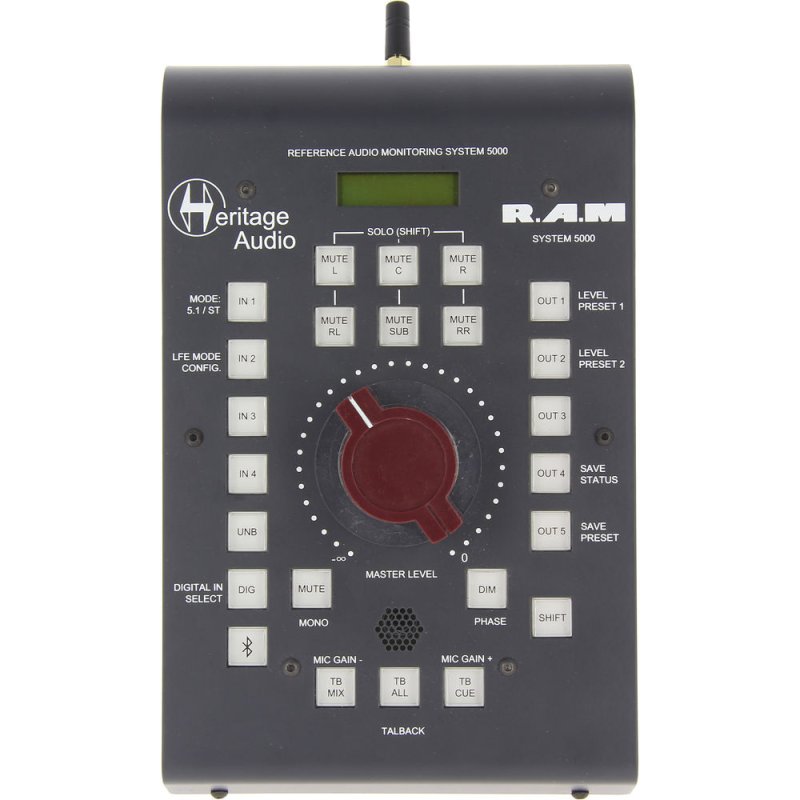

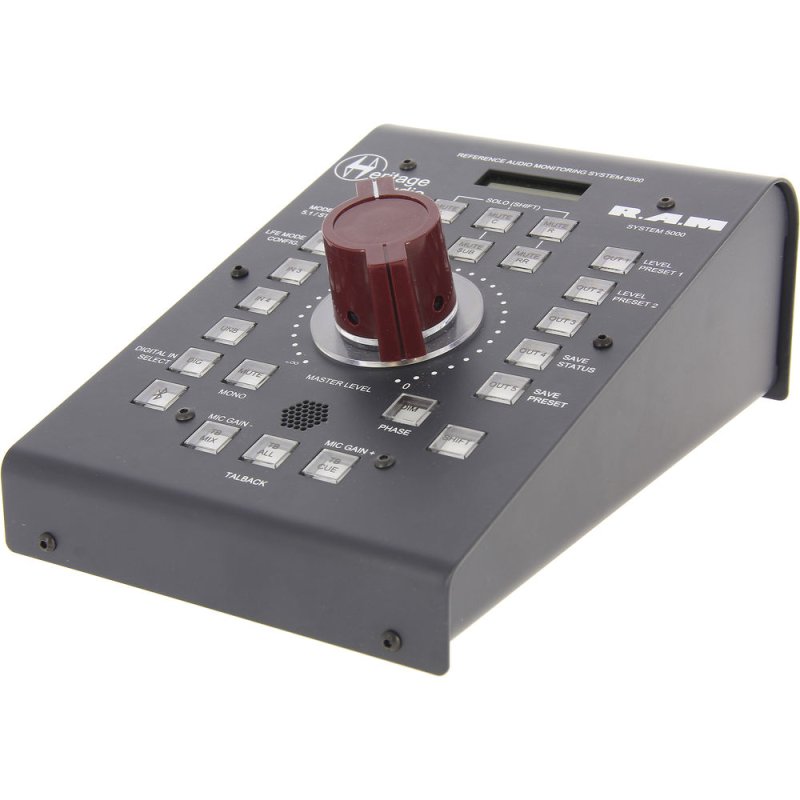

The RAM System 5000 5.1 Rackmount Monitoring System from Heritage Audio is a professional 5.1 ready monitor controller in a convenient split format. With its matrix of inputs and outputs, covering balanced and unbalanced analog, all common digital formats on a state of the art Wolfson DAC, and the innovative professional quality HA Bluetooth technology, the System 5000 will cover all the monitoring needs of the most demanding professional facilities. The level control is taken care of by means of microprocessor controlled gold-plated relays, giving a resolution of 64 dB of attenuation in 1 dB steps. Keeping active electronics to a minimum, the attenuator is buffered using premium Burr Brown circuitry for negligible coloration and no noise. Headphone monitoring is as critical as main speaker is. The RAM System 5000 employs very high current drivers in a diamond buffer configuration, which can drive any headphones to very high levels without coloration or noise. It has two amplifiers individually configurable to follow any of the CUE sends or the active input (MIX).
