4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)

4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)

Name: 4 Zone - Antenna Combiner for Wireless Mic Receivers (470 - 960 MHz)
SKU: 4ZONE

Brand: RF Venue

Model: 4ZONE

UPC: 459225904370

Please log in to see your price

Dealer locator

The ILAMP from RFvenue is a 10 dB in-line amplifier/antenna booster that provides 10 dB of gain. With an operating voltage of 12 to 18V, the item can be stand or wall mounted.

Antenna combiner for multi-zone wireless microphone systems – solves distribution challenges by making signal management simple

470 to 960 MHz frequency range, compatible across all brands

Combines up to four separate pairs of diversity antenna connections to one A and B output

Individual-channel, RF signal attenuation control down to -31 dB, in 1 dB steps

Selectable 12 VDC power for active antennas and in-line amplifiers on long cable runs

Selectable On/Off inputs allows for quick control of coverage zones for roaming microphone transmitters

About This Product

Description:

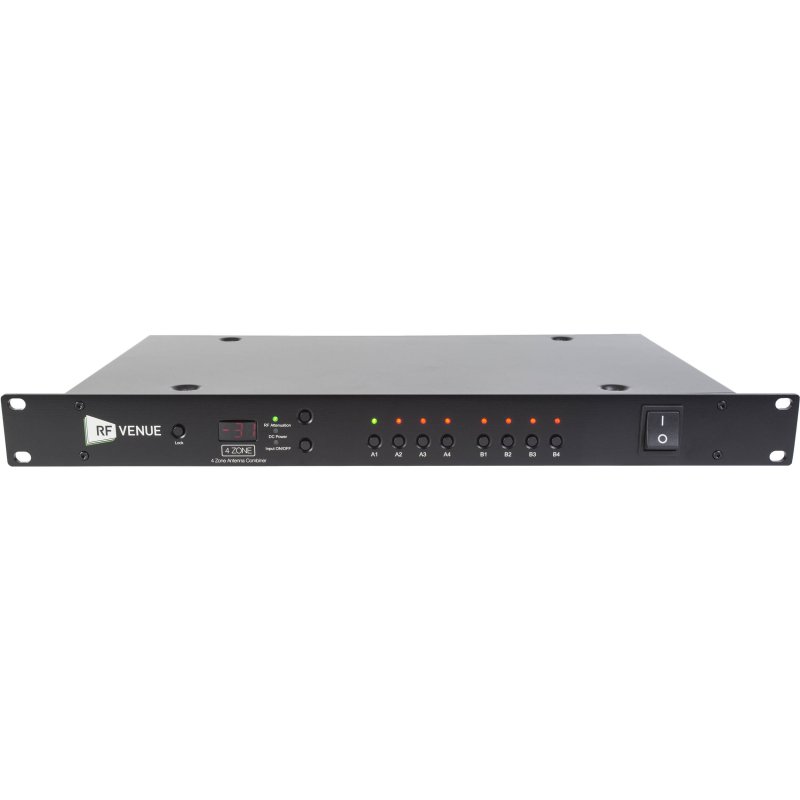

The RF Venue 4 Zone is an antenna combiner for wireless microphones receivers, which combines up to four separate pairs of diversity antenna connections. Designed to take the complexity out of multi-zone signal management, it is ideal for use in multi-purpose rooms, indoor-outdoor configurations or main stages with secondary breakout rooms. The unit operates in the 470 to 960 MHz frequency range and is compatible across all brands. It allows for fine-tuning of RF levels in each coverage area by offering RF signal attenuation control for each channel, down to -31 dB in 1 dB steps. For roaming microphone transmitters, selectable On/Off inputs let you choose which coverage zones are active, saving setup and breakdown time when working on location. Additionally, the RF Venue 4 Zone can provide 12 VDC power to active antennas or in-line amplifiers on long cable runs.

Specifications
