4-Channel 32-Bit Float Field Recorder with Mixer, Timecode, and HDMI Sync

The TASCAM FR-AV4 is more than just a 4-channel field recorder - it’s an essential audio solution for videographers, content creators, and audio professionals. With dual AD converters, Ultra HDDA low-noise microphone preamps, and 32-bit float recording, the FR-AV4 captures every nuance, from the quietest of whispers to the largest explosions, all with crystal clarity and no fear of clipping. With its built-in timecode generator and HDMI sync to firmly lock audio to video, this compact and rugged recorder is the ideal solution for videographers and sound designers in any environment. When there’s no second take, the FR-AV4 delivers.

Key Features

• 133dB wide analog dynamic range with dual AD converter and 32-bit float recording
• Ultra-low noise preamps (Ultra HDDA / EIN -127dBu) on all four XLR/TRS combo inputs ensure crystal-clear sound capture
• Mix up to four inputs to two outputs using the built-in mixer
• Record six tracks (four tracks + stereo mix) to an SDXC card
• Built-in timecode generator, HDMI and 3.5mm stereo mini jack Timecode in/out, USB out and Atomos Bluetooth sync *
• Enables precise AV sync via HDMI clock, along with cascade and rec trigger control, supporting 4K/8K video pass-through
• A portable, lightweight, and slim design—ideal for portable use, mobile recording, and studio production
• Wireless audio monitoring *
• App control via TASCAM RECORDER CONNECT *

Additional Features

• Selectable recording formats to suit your project (24-bit/ 32-bit float, 48 / 96/ 192 kHz)
• 6-in/2-out USB-C audio interface (24-bit / 32-bit float)
• Monitor Select menu allows quick and easy routing

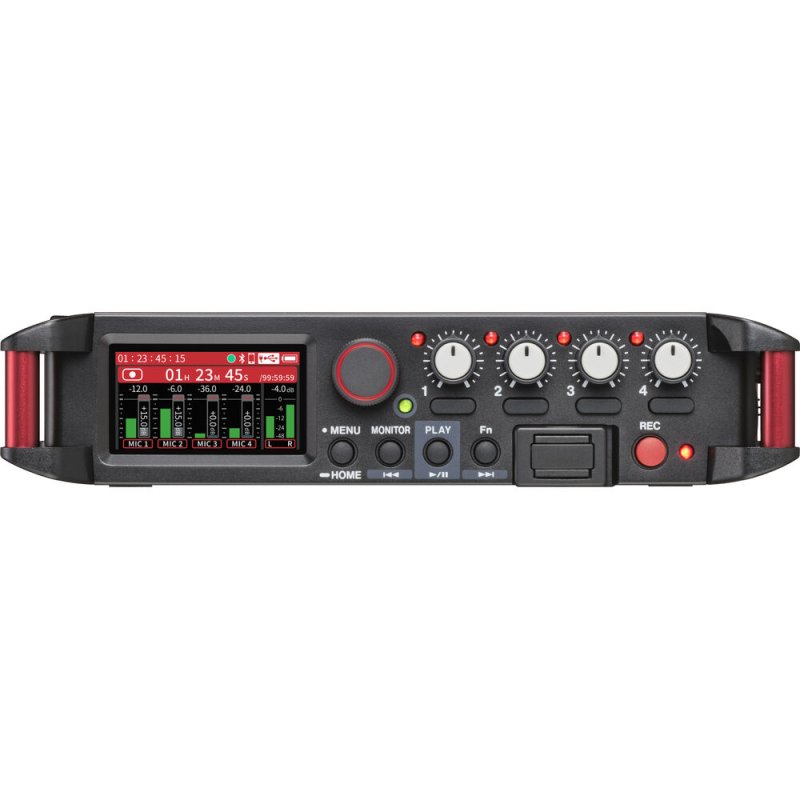

• 1.9-inch LCD touchscreen and an intuitive jog wheel for easy operation
• A function key that instantly recalls your preferred function
• Built-in low-cut filter, EQ, limiter, and noise gate
• Auto Mix with gain sharing on four channels (v.1.10 or later)
• Input and output delay functions [0–300 msec]
• Power options include four AA batteries, USB mobile battery, or optional AC adapter (PS-P520U)
• High accuracy TCXO for Jam Sync and time code generation
• Supports ambisonics audio recording in A-format / B-format (AmbiX, FuMa)
• Free TASCAM RECORDER CONNECT app for iOS, iPadOS, and Android allows you to control up to 5 units *
• Automatic file closing function to prevent the loss of recorded data if the batteries run out
• 3.5mm TRS CAMERA/EXT input (MONO/ST) with plug-in power (+2.5V/+5.0V)
• 3.5mm stereo CAMERA/TC/LINE out
• 3.5mm stereo headphone out
• Built-in tone generator for easy level matching between devices

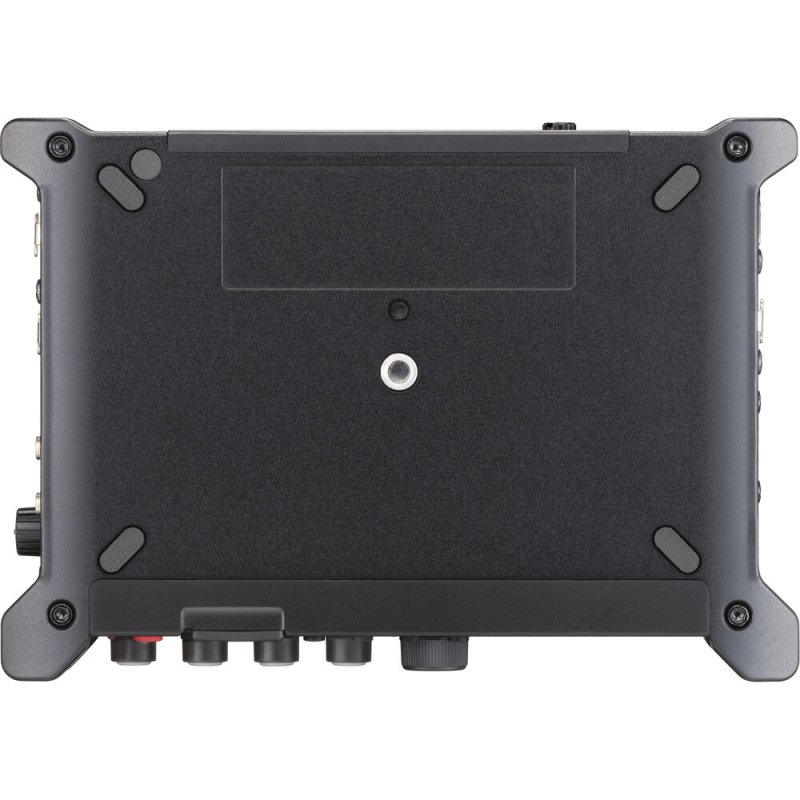

• Camera screw mount designed for use with camera rigs
• Includes a BH-4AA battery holder (additional BH-4AA available for quick and easy battery swaps)
