Concept: Passive subwoofer
Cabinet principle: Bass reflex
Power handling RMS: 1000 W
Power handling program: 2000 W
<.Power handling peak: 4000 W
Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space): 124 dB
Max. SPL peak (1 m, 10 % THD @ 70 Hz, full space): 129 dB
Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space): 96 dB
Frequency range -6 dB: 41 Hz - crossover frequency
Frequency range -10 dB: 38 Hz - crossover frequency
Dispersion angle -6 dB: omnidirectional
Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
IP protection class (EN 60529): not specified
Low frequency: 1x 18" Beyma cone speaker with ferrite magnet and 3" voice coil
Crossover: no internal crossover
Input : 1 x NL4 Speakon
Output/parallel output: 1 x NL4 Speakon
Pin assignment: 2+/- (input/parallel output), 1+/- (wired through)
Lab.Gruppen: IPX
LEA Professional: Sharkware
Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
Cabinet material: MDF
Cabinet surface: 1-component acrylic enamel
Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

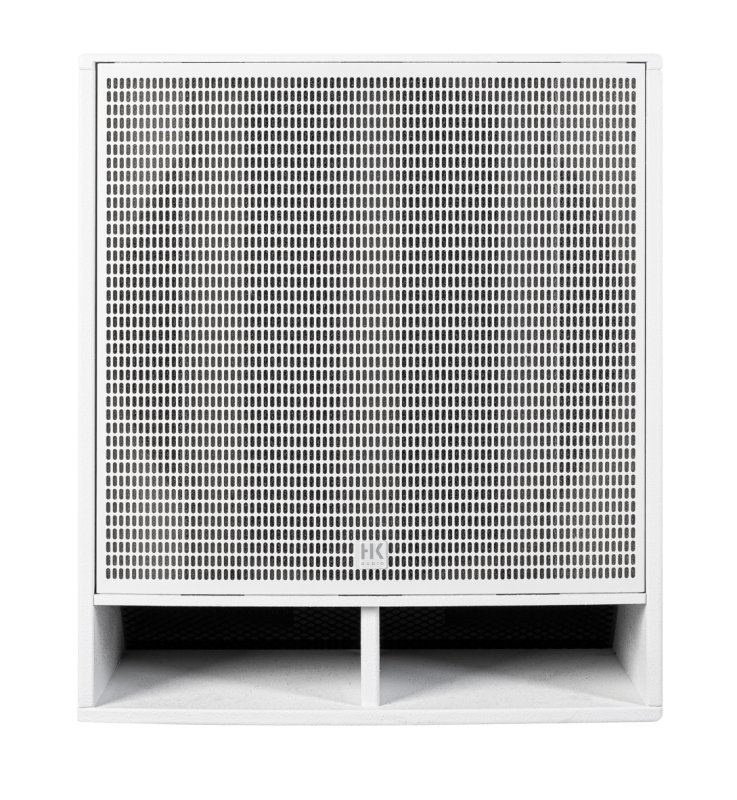

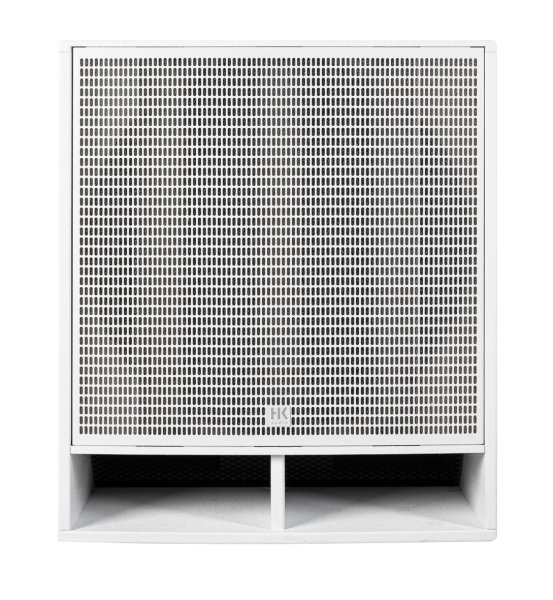

Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
Secondary grille: Insertion protection of the bass reflex port made of coated expanded metal

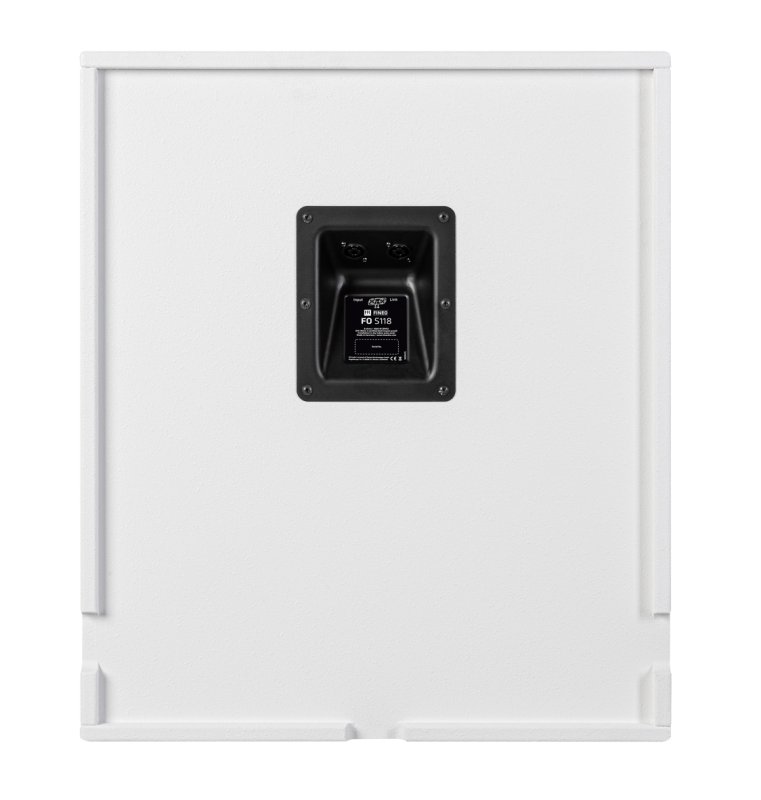

Cable routing: Cutouts on the back for cable routing close to a wall to the left, right or below
Feet: 4 x rubber foot on bottom
Dimensions (WxHxD): 520 x 608 x 721 mm 20.47 x 23.94 x 28.39 inch
Weight: 39.3 kg 86.64 Ibs
