Concept: Passive 2-way mid/high unit
Cabinet principle: Bass reflex
Power handling RMS: 100 W
Power handling program: 200 W
Power handling peak: 400 W
Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
Max. SPL average (1 m, 10 % THD @ 100 Hz - 20 kHz, (EN 60268-21), full space): 109 dB
Max. SPL peak (1 m, 10 % THD @ 2 kHz, full space): 112 dB
Sensitivity 1 W/1 m (100 Hz - 20 kHz, full space): 87 dB
Crossover frequency: 3.1 kHz
Frequency range -6 dB: 81 Hz - 20 kHz
Frequency range -10 dB: 75 Hz - 20 kHz
Dispersion angle -6 dB (circular): 110°
Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
IP protection class (EN 60529): not specified
Low-/mid frequency: 1x 5" Celestion coxial cone speaker with ferrite magnet and 1.5" voice coil
High frequency: 1 x 1" Celestion silk dome tweeter with neodymium magnet and 1" voice coil
Crossover: High pass: 18 dB/octave, low pass: 12 dB/octave
High frequency protection circuit: Self-healing PTC fuse
Horn: Coaxial membrane functions as wave guide

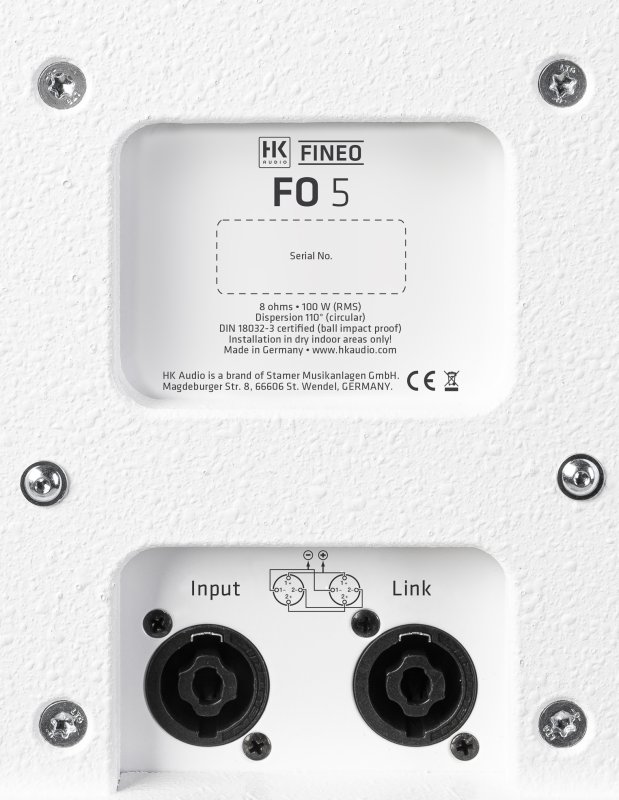

Input: 1 x NL4 Speakon
Output/parallel output: 1 x NL4 Speakon
Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)
Lab.Gruppen: IPX
LEA Professional: Sharkware
Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
Mounting points: 2 x M6 at the side, 4 x M4 at the rear
Cabinet material: MDF
Cabinet surface: 1-component acrylic enamel
Color : Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

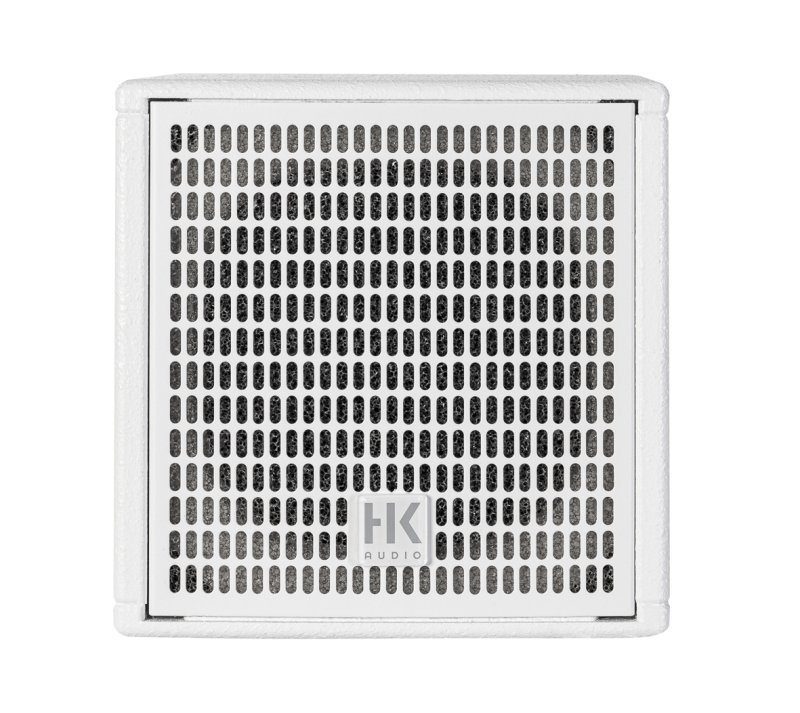

Front grille: Steel front grille with anticorrosive coating, backed acoustic foam
Optional accessories: U-bracket, L-bracket, BM-360, adapter plate to VESA MIS-D (100 x 100 mm)

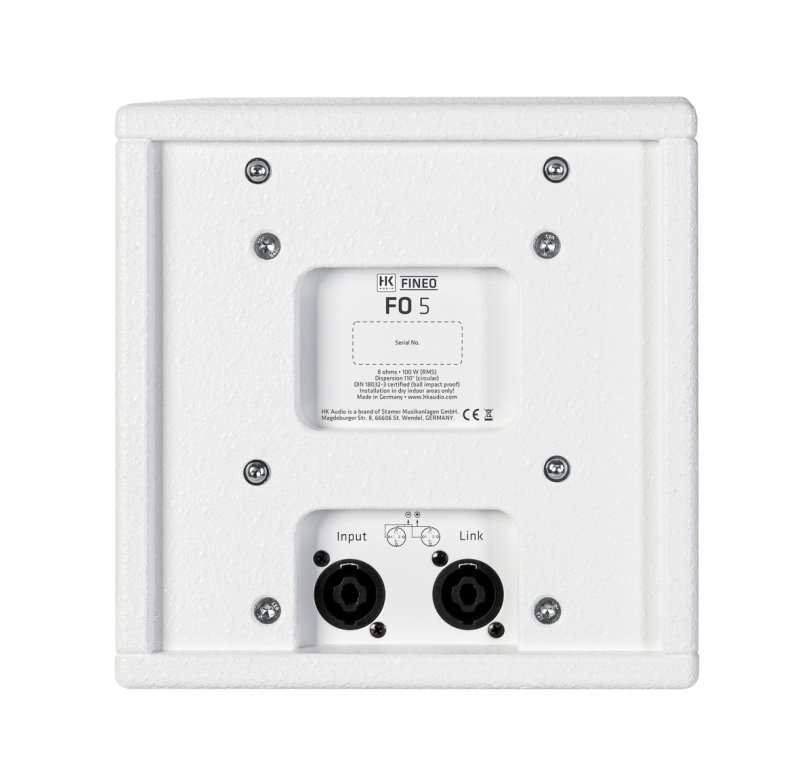

Rear hole pattern: VESA MIS-D (100 x 100 mm)
Dimensions (WxHxD): 195 x 195 x 195 mm 7.68 x 7.68 x 7.
