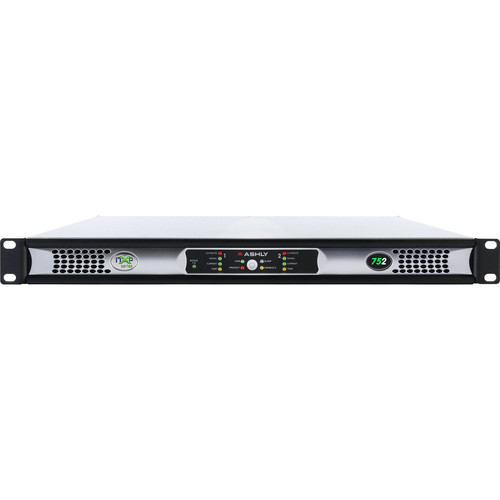

The NXP752 2-Channel Multi-Mode Network Power Amplifier from Ashly is capable of driving 2, 4, and 8 Ohms loads at full power and offers a maximum rated output power of 75W per channel at 25V, 70V, and 100V modes. It comes pre-installed with a two-channel AES3 input card with pass-thru for digital audio and Dante network audio module. The Dante card enables access to digital audio networks at low latencies (83.3 µs) over Gigabit Ethernet. The Protea DSP (Digital Signal Processing) software is also included with this unit for dynamics, gain, equalization, matrix mixer, crossover, delay, and metering.

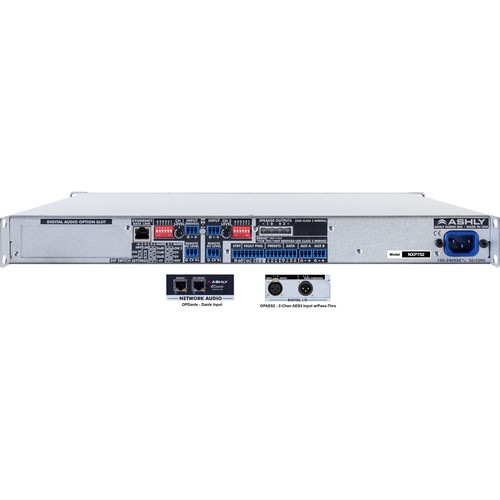

The amplifier features a lightweight 1U design with universal AC input SMPS for improved energy efficiency. It comes with additional energy saving features such as Real-Time Clock (RTC), Event Scheduler, and GPIO control. The multi-mode output capability allows each individual amplifier output channel to be set for Low-Impedance, or Constant Voltage operation using DIP switches. With the Euroblock, and IEC connectivity, this power amplifier safely fulfills the requirements for installed sound applications. |
