HK Audio

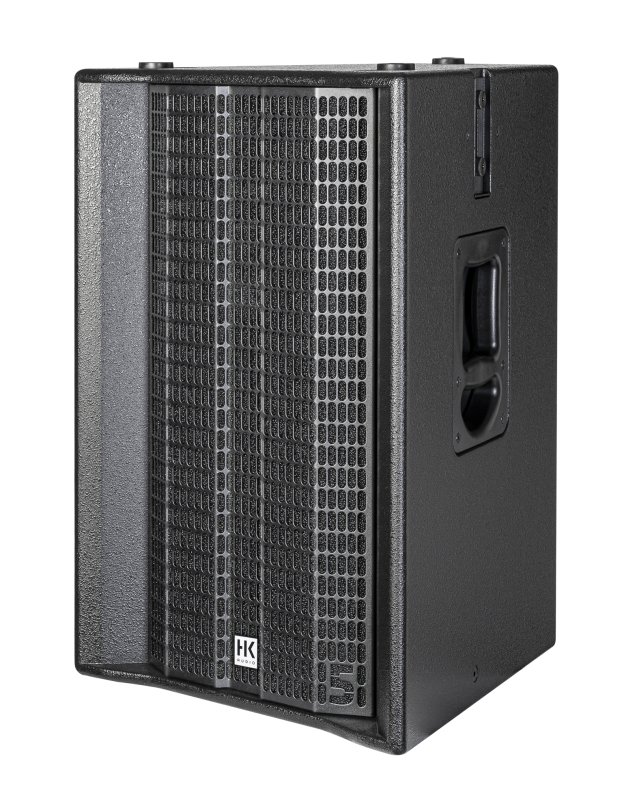

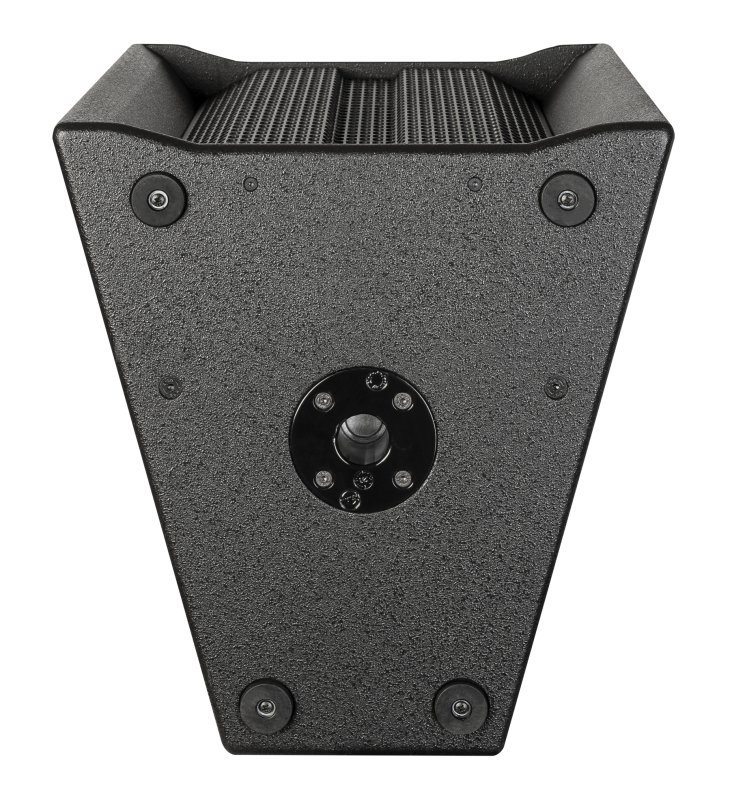

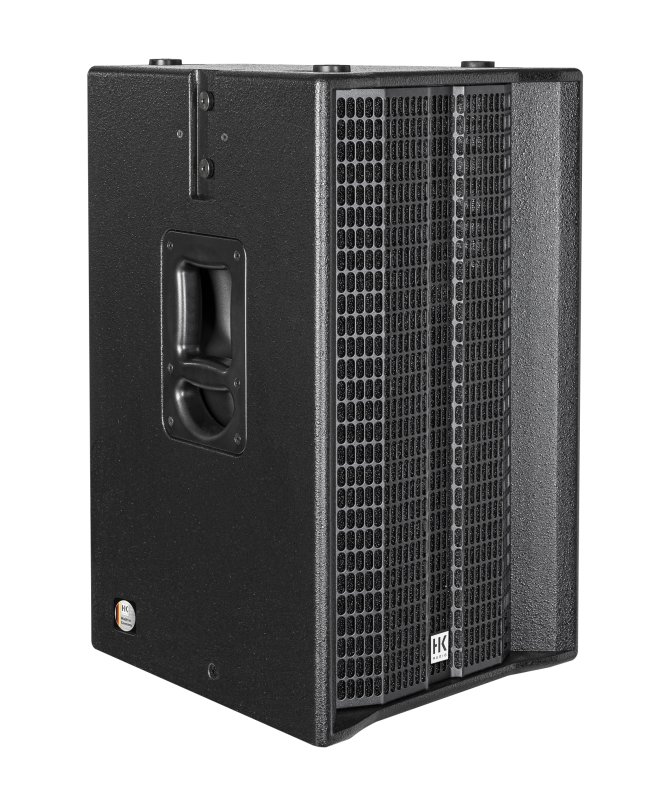

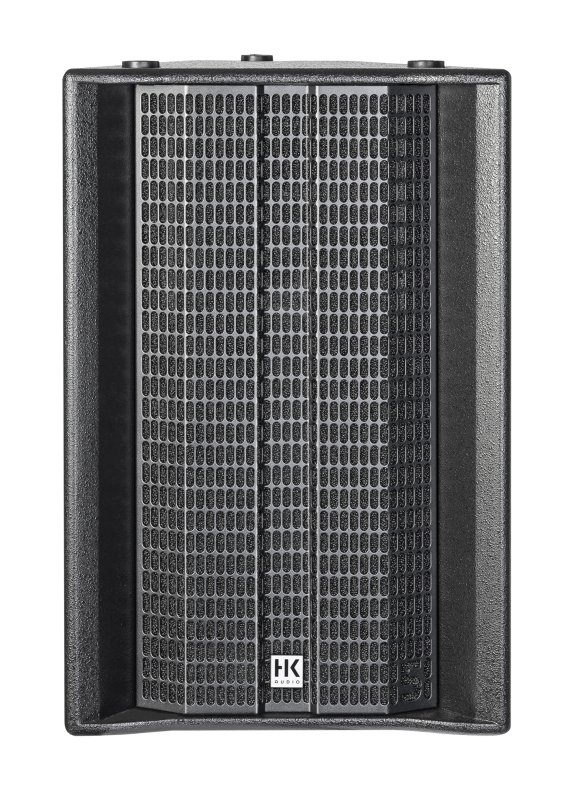

1200-Watt 3 x 8" Long Throw Mid/High Speaker

Brand: HK Audio
Model: LINEAR-5-MK2-308-LTA
UPC: 4039373026153
Please log in to see your price
Dealer locator
LINEAR 5 MK II 308 LTA is a highly efficient, scalable and economical long-throw active mid/high unit for large, long and wide rooms as well as open air spaces. It fills the gap between the classic po...

Max. SPL @ 10% THD: 133 dB half space (100 Hz – 12 kHz averaged)

Max. SPL peak @ 10 % THD: 138 dB half space

Frequency response +/-3 dB: 105 Hz – 17 kHz

Frequency response -10 dB: 98 Hz – 19 kHz

Power amp output (rms/peak): 600 / 1,200 W

Amp type: Class D - biamped

LF driver: N/A

Low-/mid speaker: 3x 8", 1.5" voice coil

HF driver: 1" Compression driver, 1.7" voice coil

Horn directivity: 60° x +5/-25° MCT horn

Active crossover frequency: 1.6 kHz FIR X-over with 60 dB/oct.

Maximum input level: +20 dBu

Analog inputs: 1x XLR combo balanced

Analog thru: 1x XLR balanced

DSP Out: 1x XLR balanced

Network port: Ethercon RJ45, 1x In , 1x Thru

Filter presets: Single, Cluster, Headstack, Remote

Remote software: DSP CONTROL (Windows, Mac OS)

DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

Sample rate: 48 kHz

System latency: <= 2.9 ms

Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V

Power consuption: 1 A / 100–240 V nominal according to EN 62368-1

Angels up (Monitor angle): N/A

Pole mount: MonoTilt 0°

Rigging points: 5x M8 (AP-8)

Carrying handles: 2x HK Audio MultiGrip

Housing: Birch multiplex

Finish: Black acrylic enamel

Front grille: 2 mm metal grille backed with black acoustic foam

Dimensions (WxHxD): 44 x 68 x 46 cm 17-21/64 x 26-49/64 x 189-7/64"

Weight: 25 kg / 55.1 lbs

more
About This Product

Description:

LINEAR 5 MK II 308 LTA is a highly efficient, scalable and economical long-throw active mid/high unit for large, long and wide rooms as well as open air spaces. It fills the gap between the classic point source PA and the line array in the form of a compact, horn-loaded direct sound source. The LINEAR 5 MK II 308 LTA with 1-inch HF-Driver and Multicell Transformer (MCT) offers unprecedented sound coverage depth without treble drop-off and with compact dimensions. Balanced and powerful sound can reach up to 40 metres and up to 3000 people without having to use delay lines. The bass and mids are reproduced crisply and richly by three vertically arranged, horn-loaded 8-inch woofers. Precisely tuned presets for clustering and headstacking are available directly on the speaker. Thanks to the flexible design variants, the system can grow as required. Even with just one LINEAR 5 MK II 308 LTA mid/high unit (per side), the sound reaches much greater depths. Cluster, headstack or headstack cluster setups can be used to achieve coverage patterns with more width and depth. LINEAR 5 MK II 308 LTA is equipped with PowerCon connectors and PowerCon Link, which simplifies wiring and saves cable material.
Specifications
  • Barcodes
  • UPC
  • 4039373026153
  • Package Measurements & Shipping Weights
  • Case Pack
  • Each
  • 1
  • Each
  • Cubic Feet
  • 7.1458
  • Height In Inches
  • 28
  • Length in Inches
  • 21
  • Pounds
  • 60
  • Width Inches
  • 21
