Max. SPL @ 10% THD: 130 dB half space (40 Hz – X-Over averaged)
Max. SPL peak @ 10 % THD: 132 dB half space
Frequency response +/-3 dB: 49 Hz – X-Over
Frequency response -10 dB: 45 Hz – X-Over
Power amp output (peak power): 1200 W
Amp type: Class D
Active protection circuits: Undervoltage-Protection, Thermoprotection, Short-Circuit-Protection, Overcurrent-Protection, Subsonic 24 dB/oct., Peak-Limiter
LF driver: 1x 15", 3" voice coil
Active crossover frequency: 100 Hz / 120 Hz variable with 24 dB/oct.

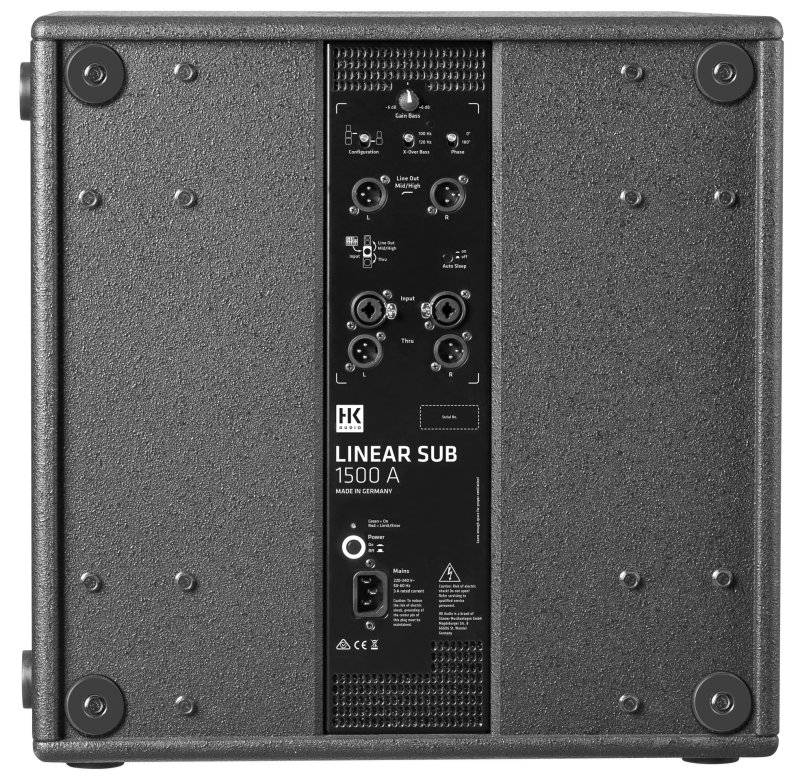

Analog inputs: 2x XLR combo balanced
Analog outputs: 2x XLR Thru balanced, 2x XLR Mid/High Out
Input sensitivity: +4 dBu @ Gain center-notched
Mains connector: 1x IEC socket with V-Lock cord retainer
Power consuption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065

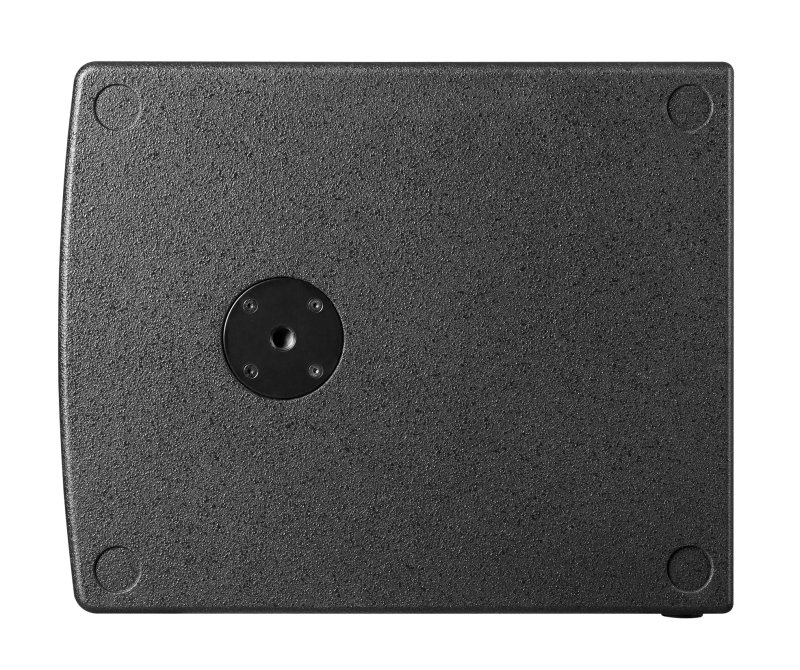

Pole mount: 1x M20

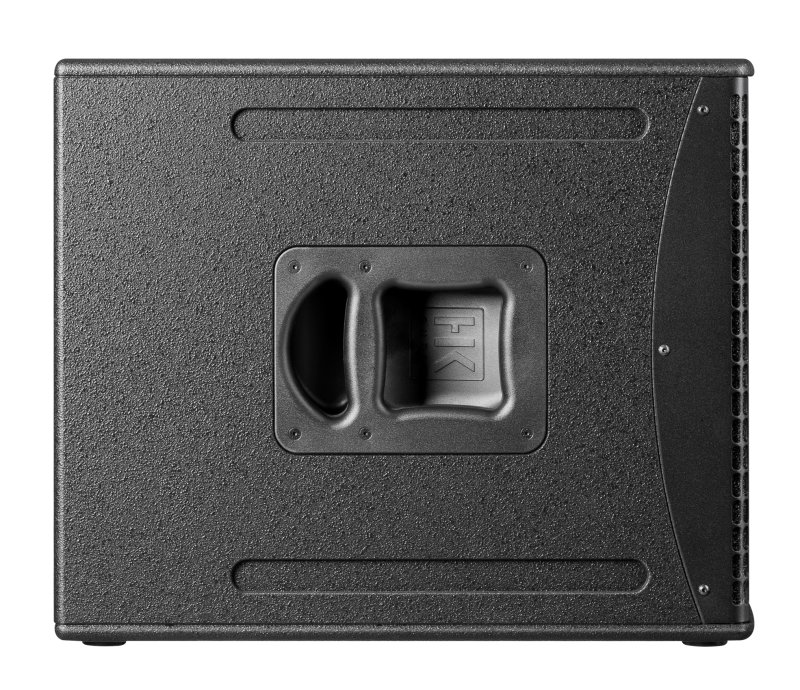

Carrying handles: 2x MultiGrip
Housing :16 mm MDF
Finish: Black acrylic enamel

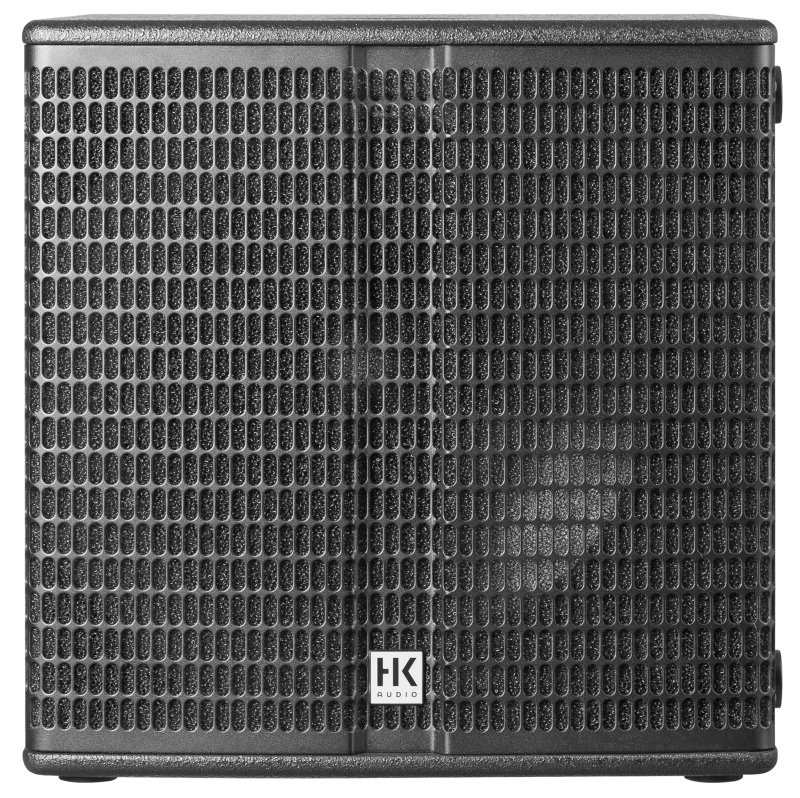

Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 48.5 x 48.5 x 59.5 cm 19-3/32 x 19-3/32 x 23-27/64"
Weight: 29.8 kg / 65.7 lbs
