Max. SPL @ 10 % THD: 127 dB half space (42 Hz – 100 Hz averaged)
Max. SPL Peak @ 10 % THD: 130 dB half space
Frequency response +/-3 dB: 44 Hz – X-over
Frequency response -10 dB: 40 Hz – X-over
Power amp output (RMS/Peak): 600 / 1,200 W
Amplifier type: Class D
Woofer: 1 x 15", 3" voice coil
Maximum input level: 20 dBu

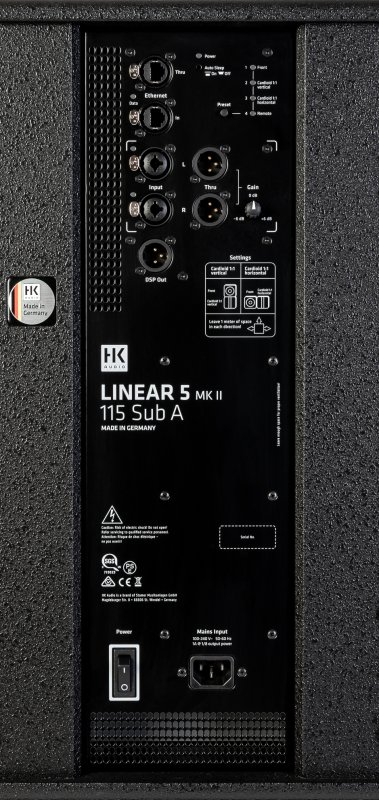

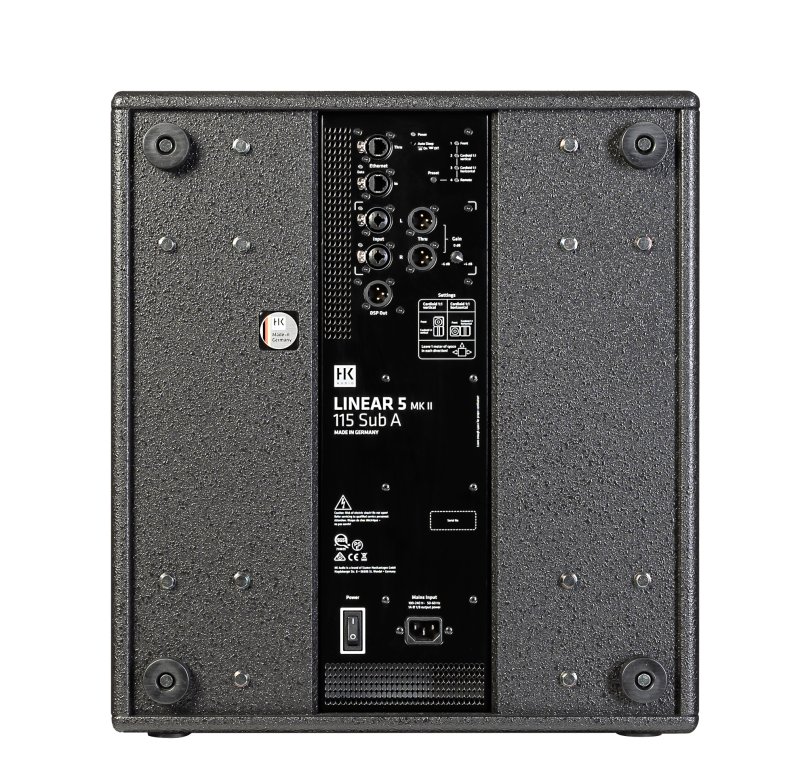

Analogue inputs: 2 x XLR combo balanced
Analogue Thru: 2 x XLR balanced
DSP Out: 1 x XLR balanced
Network port: EtherCON RJ45, 1 x In, 1 x Thru
Filter presets: Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
Remote software: DSP CONTROL (Windows, Mac OS)
DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate: 48 kHz
System latency: Less than 2 ms
Mains connection: 1x IEC connector with V-Lock securing system, 100-240 V
Power consumption: 1 A / 100–240 V nominal according to EN 62368-1

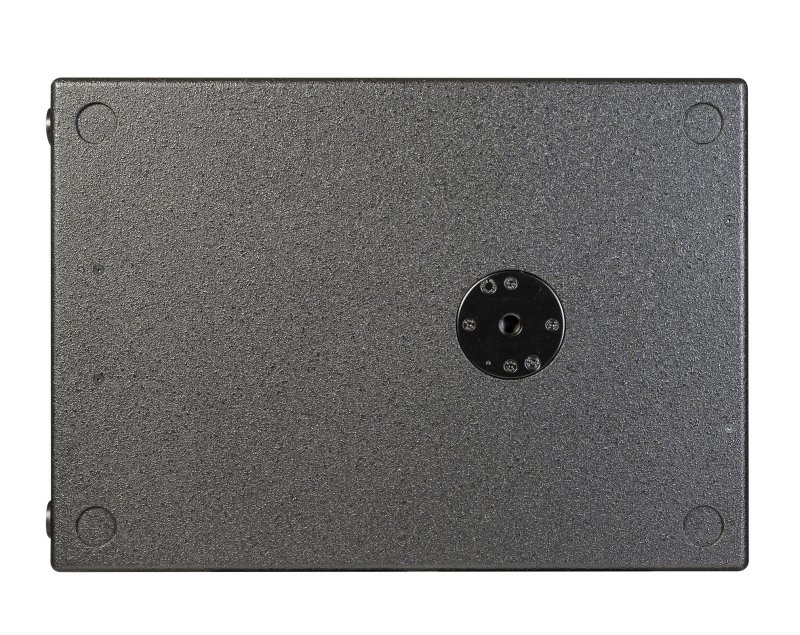

Pole mount: 1 x M20
Carrying handles: 2 x MultiGrip
Housing: Hybrid (birch multiplex/MDF)
Surface: Black acrylic enamel

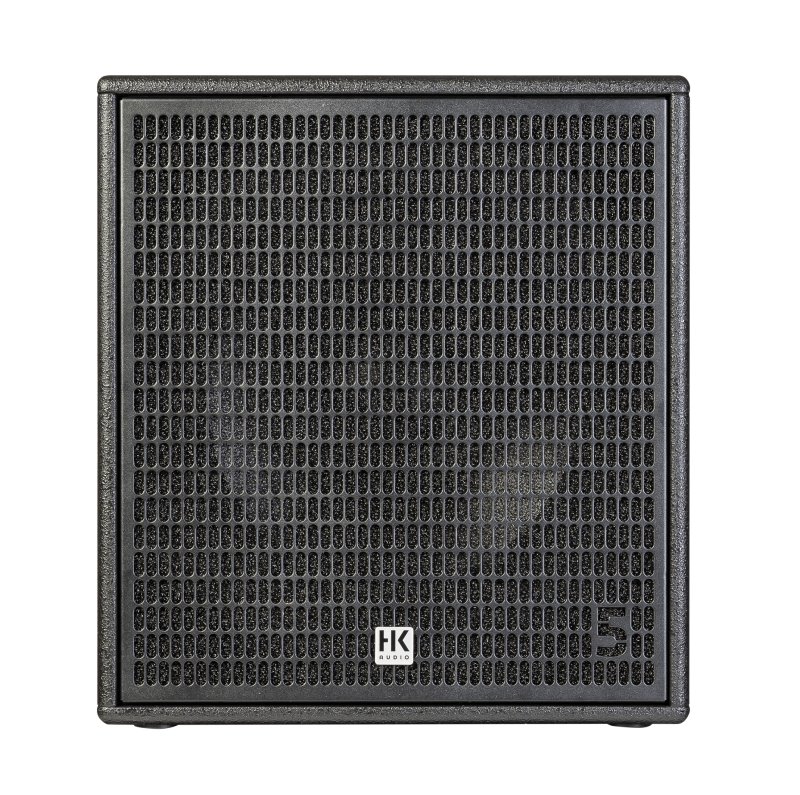

Front grille: 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 48 x 53.5 x 67.5 cm 18-57/64 x 21-1/16 x 26-37/64"
Weight: 32.9 kg / 72.53 lbs
