Max. SPL @ 10 % THD: 125 dB halfspace
Max. SPL Peak @ 10 % THD: 130 dB halfspace
Max SPL calculated: 133 dB halfspace
Frequency response +/- 3 dB: 61 Hz – 16 kHz
Frequency response -10 dB: 57 Hz – 18 kHz
Amplifier output (Peak Power): 1200 W
Amplifier type: Class D - biamped
Active protection circuits: Peak and RMS sound limiter (separated for HF and LMF)
Low/mid-range speaker: 1x 15", 2.5" voice coil
HF Driver: 1", 1" voice coil
Horn characteristics: 90° x 55° CD horn
Crossover frequency active: 2.5 kHz FIR X-over with 48 dB/oct.

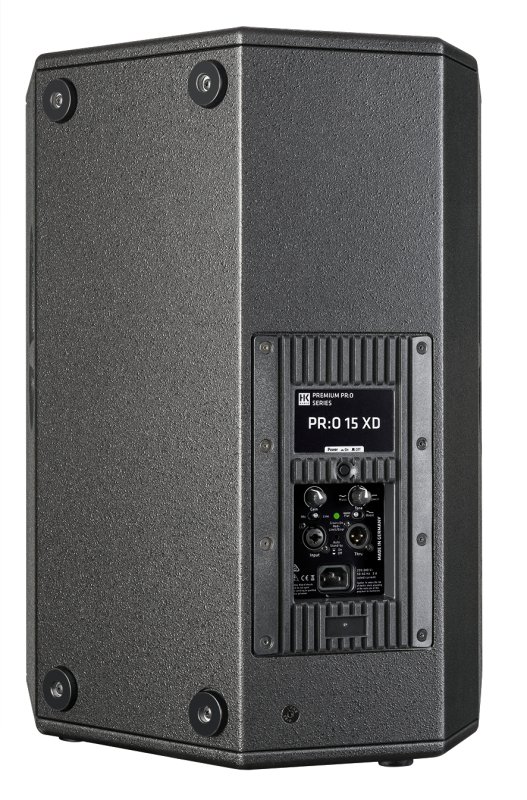

Audio connectors in: 1x XLR/jack combo balanced
Audio connectors out: 1x XLR thru bal.
Sensitivity switch: Mic/Line
Tone control: Tone controller (Music/Speech)
Filter presets: Flat/Boost
Setup angle: 42°

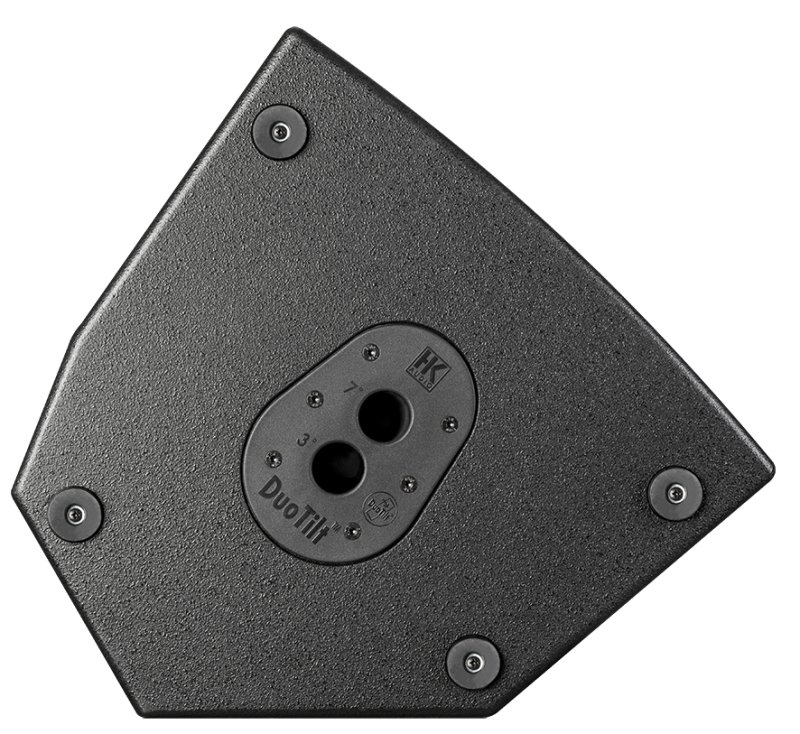

Pole mount: DuoTilt 3/7
Carrying handles: 2, MultiGrip
Housing: MDF
Finish: Black acrylic enamel

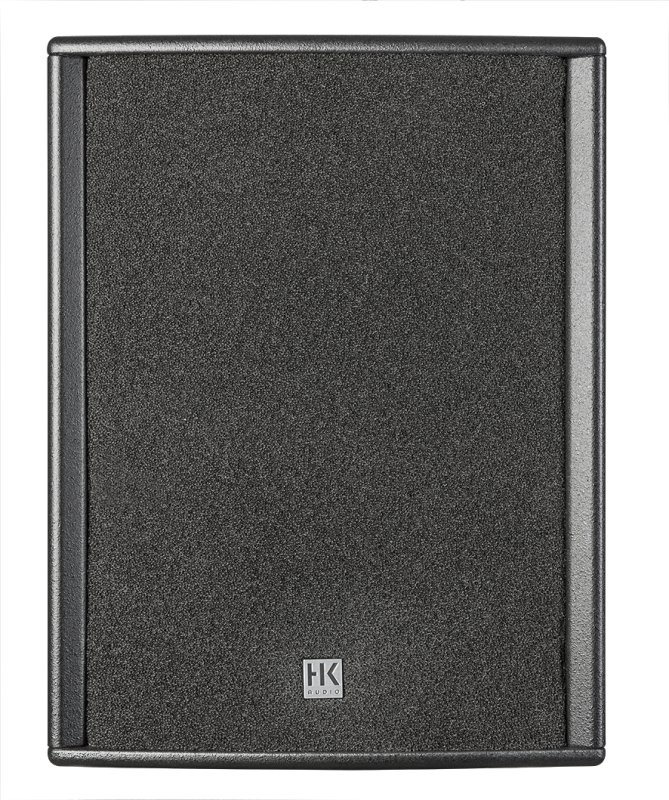

Front grille: 1.5 mm metal grille backed with black acoustic foam
Dimensions (WxHxD): 47.5 x 63 x 45.5 cm
Weight: 24.9 kg / 54,9 lbs
