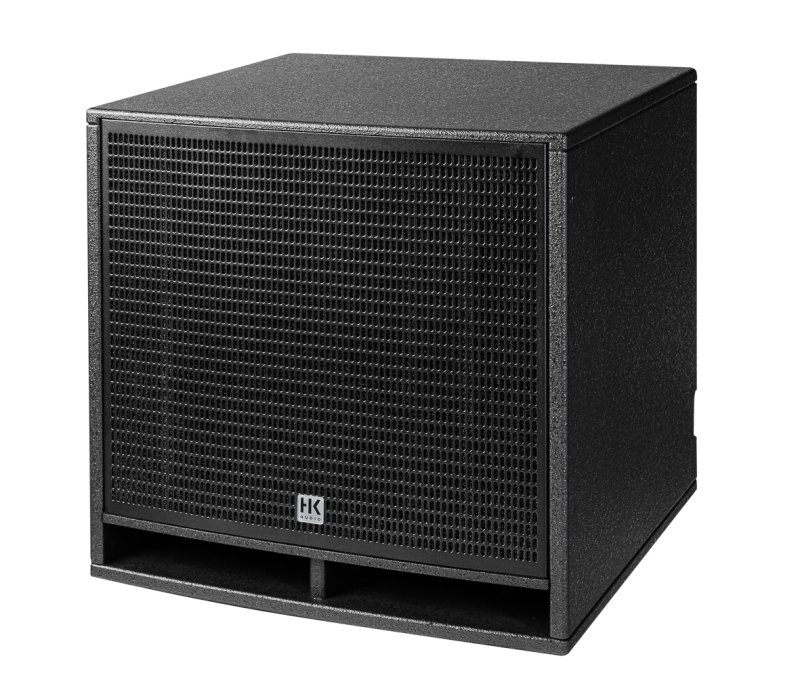

Concept: Passive subwoofer
Cabinet principle: Bass reflex
Power handling RMS: 600 W
Power handling program: 1200 W
Power handling peak: 2400 W
Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space): 116 dB
Max. SPL peak (1 m, 10 % THD @ 65 Hz, full space): 120 dB
Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space): 91 dB
Frequency range -6 dB: 61 Hz - crossover frequency
Frequency range -10 dB: 42 Hz - crossover frequency
Dispersion angle -6 dB: omnidirectional
Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
IP protection class (EN 60529): not specified
Low frequency: 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil
Crossover: no internal crossover

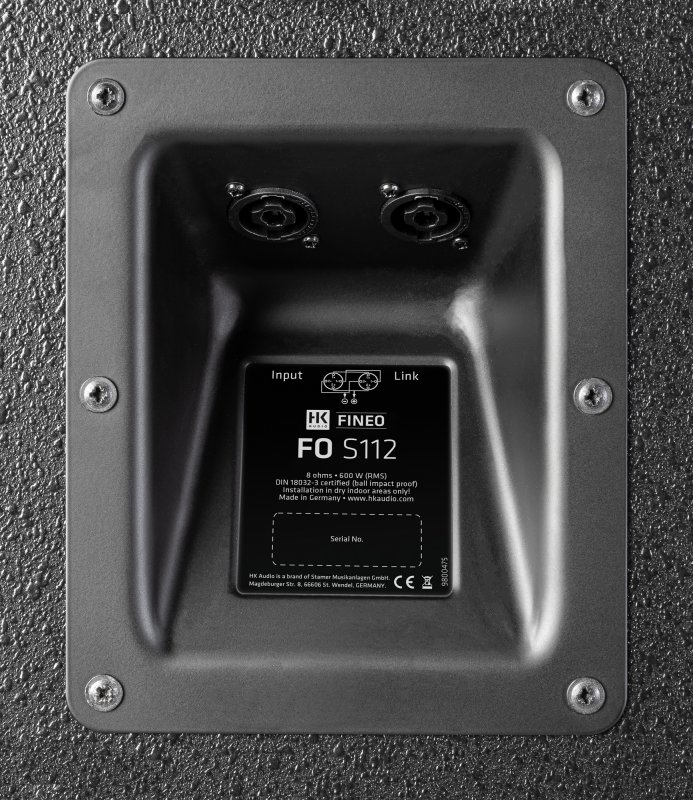

Input : 1 x NL4 Speakon
Output/parallel output: 1 x NL4 Speakon
Pin assignment: 2+/- (input/parallel output), 1+/- (wired through)
Lab.Gruppen: IPX
LEA Professional: Sharkware
Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
Cabinet material: MDF
Cabinet surface: 1-component acrylic enamel
Color : Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

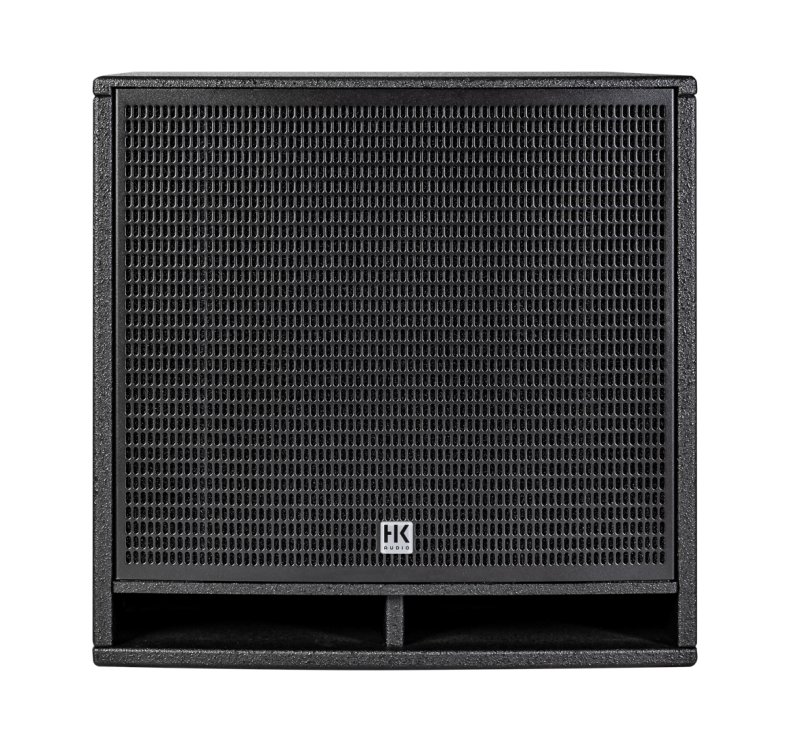

Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements
Secondary grille: Insertion protection of the bass reflex port made of coated expanded metal

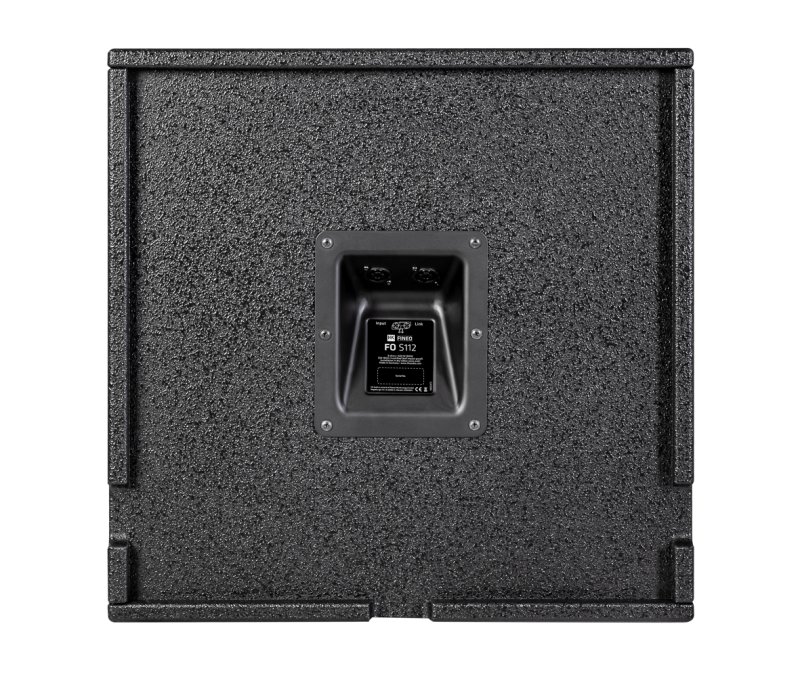

Cable routing: Cutouts on the back for cable routing close to a wall to the left, right or below

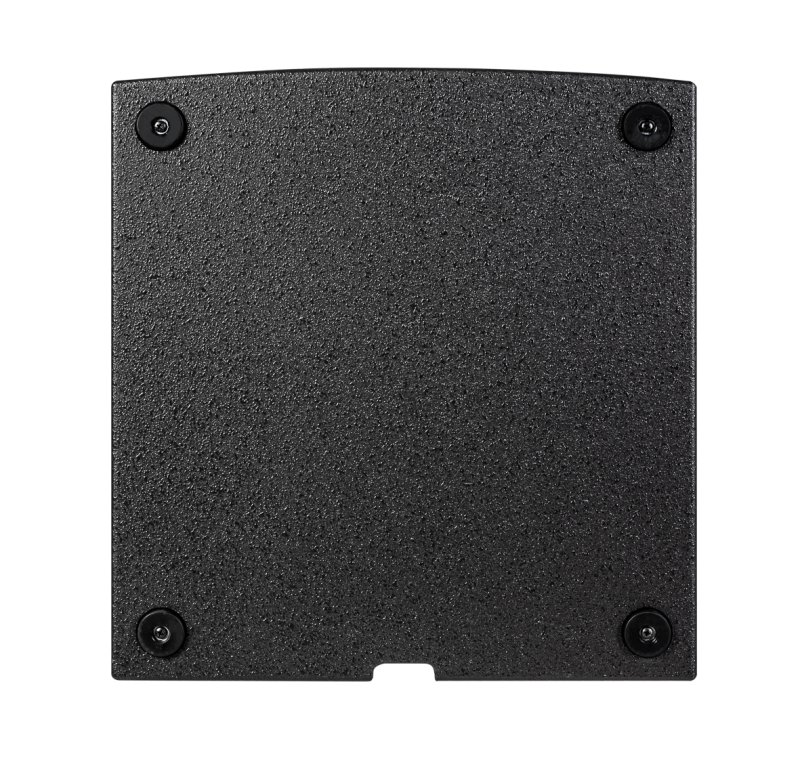

Feet: 4 x rubber foot on bottom
Dimensions (WxHxD): 474 x 478 x 506 mm 18.66 x 18.82 x 19.92 inch
Weight: 24.5 kg 54.01 Ibs
