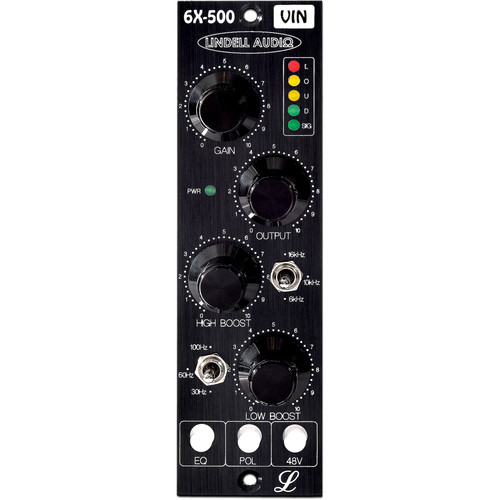

1-Channel Transformer Coupled Mic Preamp / EQ

1-Channel Transformer Coupled Mic Preamp / EQ

Name: 1-Channel Transformer Coupled Mic Preamp / EQ
SKU: 6X500VIN

Brand: Lindell Audio

Model: 6X500VIN

UPC: 19962192432

Please log in to see your price

Dealer locator

Outfit and enhance your 500 Series rack with the Lindell Audio 77X-500, a stereo FET-based compressor that's ideal for use on stereo buses, stems, submixes, and instrument sources such as drum overheads and double-miked electric guitars.

Transformer coupled balanced inputs and balanced outputs

Up to 65db of gain

Passive Pultec Equalizer; inductor plus Vintage OPA gain make-up amplifier

3-step switched EQ low frequency boost: 30Hz, 60Hz, 100Hz (+/- 10%)

3-step switched EQ high frequency boost: 6kHz, 10kHz, 16kHz (+/- 10%)

Selectable high boost bandwidth on PCB

Polarity reverse

All discrete Vintage OPA1731

48V phantom power

5-LED VU meters

Gold Plated Pcb

Power Consumption: 100mA

Input Impedance: 2.4 kOhm

Output Impedance: 70 Ohm

Max Output: +28dbu

Freq. Resp.: 20Hz - 20kHz

Dimensions: 1.5 x 5.25 x 7 inches

more

About This Product

Description:

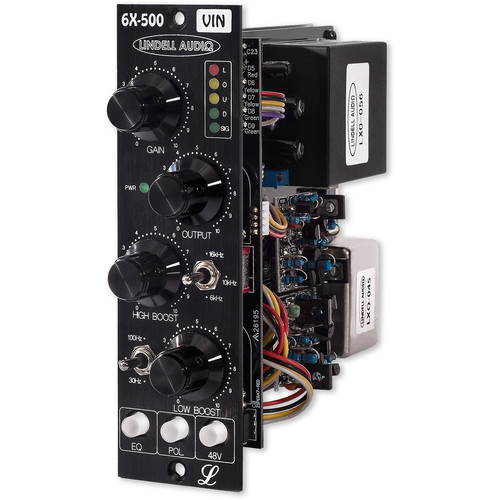

The 6X-500VIN "Vintage Edition" juices your 500 Series rack with a single-channel transformer-coupled mic preamp, along with a passive 2-band Pultec-style equalizer. This all-discrete design, based upon the highly respected VIntage 1731 amplifier, gives you an EQ section with the magical sound of a classic Pultec. With a 15db boost of the silkiest high end you'll ever hear and stunningly punchy low end, you'll wonder how Lindell managed to stuff a Pultec into this little module. Arm your studio with the fast, in-your-face sound of the delightfully affordable 6X-500VIN.

Specifications

Barcodes

UPC
019962192432

Package Measurements & Shipping Weights

Case Pack

Each
999

Each

Cubic Feet
0.0667

Height In Inches
2.4

Length in Inches
8

Pounds
1.7

Width Inches
6
